Reliable Network-Grade 208V Power Distribution with Digital Load Meters

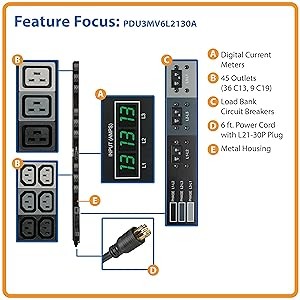

With a rugged all-metal housing, the PDU3MV6L2130A is well-equipped for power distribution in rack enclosures and network closets. It provides reliable 208V power via 45 outlets (36 x C13, 9 x C19) in three separately breakered single-phase 20A load banks. This PDU has a 6 ft. power cord with L21-30P (3P+N+E) plug.

Three digital load meters provide the current level (in amps) of connected equipment in each load bank. These meters help ensure the PDU is used at maximum capacity without danger of overload.

Versatile Installation Options, TAA-Compliant and 2-Year Warranty

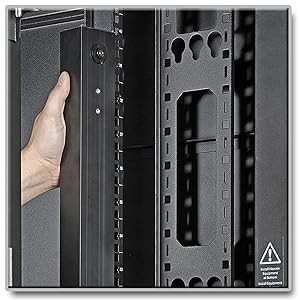

The PDU3MV6L2130A is easy to integrate with a wide range of data center and network applications. It can be configured for 0U (vertical) rack installation with the included mounting brackets, and it also supports toolless button-mount vertical installation in compatible rack enclosures. Vertical 0U installation reduces cord clutter and promotes efficient airflow through the rack.

The PDU3MV6L2130A complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

The PDU3MV6L2130A comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
