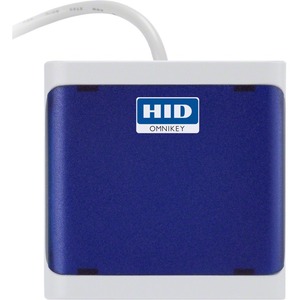

CONTACTLESS HIGH FREQUENCY SMART CARD READER FOR FAT, THIN AND ZERO CLIENTS.
- Leverage existing employee badge – Expand the usage of existing physical access cards to computer logon, as well as network and cloud access.
- Increased security and better user experience – Read and retrieve highly secure one-time passwords (OTP) from Seos® cards.
- Easy to install – Eliminates the need to install drivers; uses native supported CCID drivers within the operating system.
- Compact Form factor – enables two- factor authentication in space-restricted work environments such as healthcare.
Typical environments for the reader include healthcare, pharmaceutical, financial services, enterprise, government and other agencies seeking higher security and access management.
The OMNIKEY 5022 read can also be used to meet security and regulatory compliance requirements which mandate two-factor user authentication for accessing workstations and applications.
The reader eliminates the requirement for driver installation and is suitable to be used with standard PC or workstations, as well as with thin and zero clients.
By supporting numerous credentials based on common ISO14443 A/B, ISO 15693 standards, the reader is an ideal entrylevel choice to support a small footprint.
The OMNIKEY 5022 is interoperable with a number of smart card technologies, tags, and NFC-enabled smart devices.
The reader is integrated and tested with HID Global’s ActivID® ActivClient, ActivID® Applets, and HID Trusted Tag® Service.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
USB Smart Card Reader in small form-factor
Base Model Number OMNIKEY 5022
Contact Smart Card Interface
Protocols
T=CL, MIFARE®, iCLASS®
ISO 14443A/B - up to 848 kbps (depending on card)
ISO 15693 - up to 26 kbps (depending on card)
NFC Tag 1-4*
Host Interface
USB Interface USB 2.0 Full Speed Device (12 MBps)
USB 3.0 extended operability, tested with hubs/controllers
Connector / Cable USB Type A connector; 59.1" (150 cm) cable
Operating Systems
Windows 10/8.1/8/7/Vista/Server 2012/Server 2008R2
Windows CE (6/7) depending on hardware
Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+
Mac OS X; Android™ 4.0
Driver CCID native driver from operating system (Windows/Linux/Mac)
Supported APIs PC/SC - API
Human Interface
Status Indicator White LED
Housing
Housing
Poly Carbonate
Body Light Grey / Cover in different colors available
Customer-specific logo or colour on request
Dimensions 2.32"" x 2.32" x 0.44" (59 x 59 x 11,4 mm)
Weight ~70 g (2.5 oz)
Operating Conditions
Operating Temperature 32-158 F (0-70°C)
Operating Humidity 10-95% rH
Storage Temperature -4 - 176 F (-40 - 80°C)
Meantime Between Failure
(MTBF)
500.000 hours
Compliance Regulatory
Compliance / Certification USB 2.0
Regional certifications CE, FCC, UL, KCC, RCM
Environmental WEEE, RoHS2, Reach
Ordering Information
Warranty Two-year manufacturer`s warranty
Optional Mounting accessories kit
Card Holder for card presence operation
