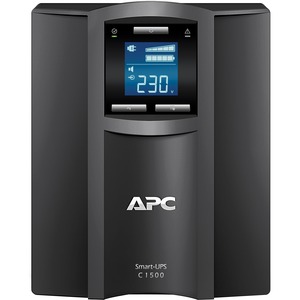

Smart-UPS C 1500VA LCD 230V

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Manufacturer Part Number
SMC1500I-CSTD-3YR
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Output

  • Output power capacity

    900 Watts / 1.5 kVA

  • Max Configurable Power (Watts)

    900 Watts / 1.5 kVA

  • Nominal Output Voltage

    230V

  • Output Voltage Distortion

    Less than 5% at full load

  • Output Frequency (sync to mains)

    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

  • Topology

    Line Interactive

  • Waveform type

    Sine wave

  • Output Connections

    (8) IEC 320 C13 (Battery Backup)

Input

  • Nominal Input Voltage

    230V

  • Input frequency

    50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections

    IEC-320 C14

  • Input voltage range for main operations

    180 - 287 V

  • Input voltage adjustable range for mains operation

    170 - 300 V

  • Other Input Voltages

    220, 240
Batteries & Runtime

  • Battery type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

  • Typical recharge time

    3 hour(s)

  • Replacement Battery

    RBC6

  • Replacement Battery

    RBC6

  • RBC Quantity

    1

  • Battery Volt-Amp-Hour Capacity

    220

  • Runtime

    View Runtime Graph

    View Runtime Chart

  • Efficiency

    View Efficiency Graph

Communications & Management

  • Interface Port(s)

    USB

  • Control panel

    Multi-function LCD status and control console

  • Audible Alarm

    Alarm when on battery : distinctive low battery alarm : configurable delays

  • Emergency Power Off (EPO)

    --
Surge Protection and Filtering

  • Surge energy rating

    459 Joules

  • Filtering

    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical

  • Maximum Height

    219 , 21.9 CM

  • Maximum Width

    171 , 17.1 CM

  • Maximum Depth

    439 , 43.9 CM

  • Net Weight

    24.09 KG

  • Shipping weight

    27.23 KG

  • Shipping Height

    376 , 37.6 CM

  • Shipping Width

    328 , 32.8 CM

  • Shipping Depth

    595 , 59.5 CM

  • Master Carton Units

    1.0

  • Units per Pallet

    18.0
Environmental

  • Operating Environment

    0 - 40 °C

  • Operating Relative Humidity

    0 - 95 %

  • Operating Elevation

    0-3000 meters

  • Storage Temperature

    -15 - 45 °C

  • Storage Relative Humidity

    0 - 95 %

  • Storage Elevation

    0-15000 meters

  • Audible noise at 1 meter from surface of unit

    45.0 dBA

  • Online thermal dissipation

    135.0 BTU/hr
Conformance

  • Approvals

    C-tick, CE, GOST, VDE

  • Standard warranty

    2 years repair or replace
Sustainable Offer Status

  • RoHS

    Compliant

  • REACH

    REACH: Contains No SVHCs

Published Date: April 13, 2016
SMC1500I-CSTD-3YR
