Specifications

Radios

• One 2.4 GHz 802.11b/g/n, one 5 GHz 802.11a/n/ac, one dedicated for dual-band WIPS & spectrum analysis, and one dedicated to Bluetooth Low Energy
• Concurrent operations of all four radios
• Max data rate 1.2 Gbit/s

Operating bands:
FCC (US)

• 2.412-2.484 GHz
• 5.150-5.250 GHz (UNII-1)
• 5.725 -5.825 GHz (UNII-3)

CE (Europe)

• 2.412-2.484 GHz
• 5.150-5.250 GHz (UNII-1)
• 5.250-5.350, 5.470-5.600, 5.660-5.725 GHz (UNII-2)

802.11ac and 802.11n Capabilities

• 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
• Maximal ratio combining (MRC)
• Beamforming
• 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
• Packet aggregation

Power

• Power over Ethernet: 37 - 57 V (802.3af compatible)
• 12 V DC
• Power consumption: 13.87W max (802.3af)
• Power over Ethernet injector and DC adapter sold separately

Mounting

• All standard mounting hardware included
• Desktop and wall mount
• Ceiling tile rail (9/16, 15/16 or 1 ½” flush or recessed rails), assorted cable junction boxes
• Bubble level on mounting cradle for accurate horizontal wall mounting

Physical Security

• Two included security screw options
• Kensington lock hard point
• Anti-tamper cable bay
• Concealed mount plate

Environment

• Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5 to 95% non-condensing

Physical Dimensions

• 10.0” x 6.1” x 1.5” (253.4 mm x 155.8 mm x 37.1 mm), not including deskmount feet or mount plate
• Weight: 25 oz (0.7kg)

Antenna

• Integrated omni-directional antennas

Interfaces

• 1x 100/1000Base-T Ethernet (RJ45)
• 1x DC power connector (5 mm x 2.1 mm, center positive)

Security

• Integrated policy firewall (Identity Policy Manager)
• Mobile device policies
• Air Marshal: Real-time WIPS (wireless intrusion prevention system) with alarms
• Rogue AP containment
• Guest isolation
• Teleworker VPN with IPsec
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• TKIP and AES encryption
• VLAN tagging (802.1q)

Quality of Service

• Wireless Quality of Service (WMM/802.11e)
• Advanced Power Save (U-APSD)
• DSCP
• 802.1p
• Layer 7 application traffic shaping and firewall

Mobility

• PMK and OKC credential support for fast Layer 2 roaming
• 802.11r and 802.11k
• Layer 3 roaming

LED Indicators

• 2 Ethernet status
• 1 power/booting/firmware upgrade status

Regulatory

• Anatel (Brazil), FCC (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand)
• RoHS
• For additional country-specific regulatory information, please contact Meraki sales

Warranty

• Lifetime hardware warranty with advanced replacement included

Ordering Information

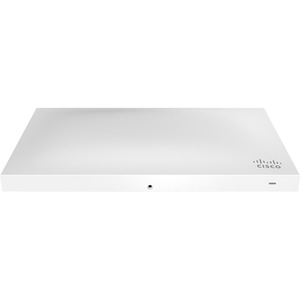

• MR34-HW Meraki MR34 Cloud Managed AP
• AC-MR-1-XX Meraki AC Adapter for MR Series (XX = US, EU, UK or AU)
• MA-INJ-4-XX Cisco Meraki 802.3at Power over Ethernet Injector (XX = US, EU, UK or AU)
• Note: Meraki Enterprise license required.

Does not come with a power supply
