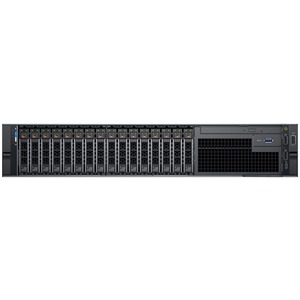

POWEREDGE R740
Optimized for workload acceleration
The PowerEdge R740 was designed to accelerate application performance leveraging accelerator cards and storage scalability. The 2-socket, 2U platform has the optimum balance of resources to power the most demanding environments.
Expand and optimize application performance
The scalable business architecture of the R740 can scale up to three 300W GPU’s or six 150W GPU’s. With up to 16 2.5” drives or 8 3.5” drives the R740 provides the versatility to adapt to virtually any application and provides the perfect platform for VDI deployments.
- Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730.
- Free up storage space using internal M.2 SSDs optimized for boot.
- Scale compute resources with Intel® Xeon® SP delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation of Xeon processors.
The Dell EMC OpenManage™ portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R740 is simply managed, freeing up time for high profile projects.
- Simplify management with the New OpenManage Enterprise™ console, with customized reporting and automatic discovery.
- Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.
Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server lifecycle. The R740 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
- Rely on a secure component supply chain to ensure protection from factory to the data center.
- Maintain data safety with cryptographically signed firmware packages and Secure Boot.
- Prevent unauthorized or malicious change with Server Lockdown.
- Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Base
PowerEdge R740 Smart Value
Warranty
3 Years Basic Hardware Warranty Repair: 5x10 HW-Only, 5x10 NBD Onsite
Shipping Information
US No Canada Ship Charge
FGA Module
PowerEdge R740 Q3FY18 NA BTP
Deployment Services
No Installation
Shipping
PowerEdge R740 Shipping
PC Ie Riser
Riser Config 1, 4 x8 slots
Network Daughter Card
Broadcom 5720 QP 1Gb Network Daughter Card
Embedded Systems Management
iDRAC9 Enterprise with OpenManage Essentials, Server Configuration Management
Chassis Configuration
Chassis with up to 8 x 3.5" SAS/SATA Hard Drives for 1CPU Configuration
Fans
4 Standard Fans for R740/740XD
Bezel
PowerEdge 2U Standard Bezel
BIOS and Advanced System Configuration Settings
Performance BIOS Setting
Motherboard
PowerEdge R740/R740XD Motherboard
RAID Configuration
C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
RAID/ Internal Storage Controllers
PERC H740P RAID Controller, 8GB NV Cache, Minicard
IDSDM and V Flash Card Reader
IDSDM and Combo Card Reader
Processor
Intel® Xeon® Silver 4108 1.8G, 8C/16T, 9.6GT/s, 11M Cache, Turbo, HT (85W) DDR4-2400
Additional Processor
No Additional Processor
Memory Capacity
16GB RDIMM, 2666MT/s, Dual Rank
Memory DIMM Type and Speed
2666MT/s RDIMMs
Memory Configuration Type
Performance Optimized
Hard Drives
1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
Trusted Platform Module
Trusted Platform Module 2.0
System Documentation
No Systems Documentation, No OpenManage DVD Kit
Internal Optical Drive
DVD+/-RW,SATA,Int
Rack Rails
ReadyRails™ Sliding Rails Without Cable Management Arm
Power supply
Dual, Hot-plug, Redundant Power Supply (1+1), 750W
Power Cords
2X NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America
Operating System
No Operating System
OS Media Kits
No Media Required
Shipping Material
PowerEdge R740 Shipping Material
Group Manager
iDRAC Group Manager, Enabled
Password
iDRAC,Legacy Password
Distribution Label
Print on Demand Label
Quick Sync
Quick Sync 2 (At-the-box mgmt)
Processor Thermal Configuration
1 Standard Heatsink for 125W or less CPU
Base SKU
998-CRMC
Base Sku Class
$Q002
Chassis
12248
Long Description
PowerEdge R740 Smart Value|3 Years Basic Hardware Warranty Repair: 5x10 HW-Only, 5x10 NBD Onsite
Country of Origin
Mexico
Serial scan
Service Tag
Offline Quote Number
3000018385480
Box Dimensions
38x26x13
Box Weight
80.40
Minimum Order Quantity
1
Pallet Layer Quantity
1
Pallet Total Quantity
3
Case Pack Quantity
1
