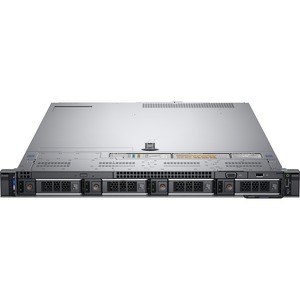

POWEREDGE R640
Uncompromising performance and density
The PowerEdge R640 is the ideal dual-socket, 1U platform for dense scale-out data center computing. The R640 combines density, performance and scalability to optimize application performance and data center density.
Maximize application performance and density
The scalable business architecture of the R640 is designed to maximize application performance and provide the flexibility to optimize configurations based on the application and use case. With the R640 you can create an NVMe cache pool and use either 2.5” or 3.5” drives for data storage. Combined with up to 24 DIMM’s, 12 of which can be NVDIMM’s, you have the resources to create the optimum configuration to maximize application performance with the optimum configuration in only a 1U chassis.
- Simplify deployments and speed deployments with Dell EMC ready nodes for ScaleIO and VSAN.
- Maximize storage performance with up to 8 NVMe drives or 12 2.5” drives.
- Scale compute resources with Intel® Xeon® SP delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation Xeon processors.
The Dell EMC OpenManage™ portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R640 is simply managed, freeing up time for high profile projects.
- Simplify management with the New OpenManage Enterprise™ console, with customized reporting and automatic discovery.
- Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.
Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server lifecyle. The R640 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
- Rely on a secure component supply chain to ensure protection from factory to the data center Quick Sync 2 for secure, wireless management in the data center.
- Maintain data safety with cryptographically signed firmware packages and Secure Boot.
- Prevent unauthorized or malicious change with Server Lockdown.
- Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Base
PowerEdge R640 Smart Value
Warranty
3 Years Basic Hardware Warranty Repair: 5x10 HW-Only, 5x10 NBD Onsite
Shipping Information
US No Canada Ship Charge
FGA Module
PowerEdge R640 Q3FY18 NA BTP
Deployment Services
No Installation
Shipping
PowerEdge R640 Shipping
PC Ie Riser
Riser Config 4, 2x16 LP
Network Daughter Card
Broadcom 5720 QP 1Gb Network Daughter Card
Embedded Systems Management
iDRAC9 Enterprise with OpenManage Essentials, Server Configuration Management
Chassis Configuration
3.5” Chassis with up to 4 Hard Drives and 3PCIe slots
Fans
5 Standard Fans for R640
Bezel
Standard Bezel for x4 and x8 chassis
BIOS and Advanced System Configuration Settings
Performance BIOS Setting
Advanced System Configurations
Energy Star
Motherboard
PowerEdge R640 Motherboard
RAID Configuration
C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
RAID/ Internal Storage Controllers
HBA330 12Gbps SAS Controller, Minicard
IDSDM and V Flash Card Reader
IDSDM and Combo Card Reader
Processor
Intel® Xeon® Bronze 3104 1.7G, 6C/6T, 9.6GT/s, 8M Cache, No Turbo, No HT (85W) DDR4-2133
Additional Processor
No Additional Processor
Memory Capacity
16GB RDIMM, 2666MT/s, Dual Rank
Memory DIMM Type and Speed
2666MT/s RDIMMs
Memory Configuration Type
Performance Optimized
Hard Drives
1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
Trusted Platform Module
Trusted Platform Module 2.0
System Documentation
No Systems Documentation, No OpenManage DVD Kit
Internal Optical Drive
DVD +/-RW, SATA, Internal
Rack Rails
ReadyRails™ Sliding Rails Without Cable Management Arm
Power supply
Dual, Hot-plug, Redundant Power Supply (1+1), 750W
Power Cords
2X NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America
Operating System
No Operating System
OS Media Kits
No Media Required
Shipping Material
PowerEdge R640 x4 and x10 Drive Shipping Material
Group Manager
iDRAC Group Manager, Enabled
Password
iDRAC,Legacy Password
Distribution Label
Print on Demand Label
Quick Sync
Quick Sync 2 (At-the-box mgmt)
Processor Thermal Configuration
Standard Heatsink for 1 CPU
Base SKU
998-CRNC
Base Sku Class
$K002
Chassis
12232
Long Description
PowerEdge R640 Smart Value|3 Years Basic Hardware Warranty Repair: 5x10 HW-Only, 5x10 NBD Onsite
Country of Origin
Mexico
Serial scan
Service Tag
Offline Quote Number
3000018384001
Box Dimensions
41x25.5x12
Box Weight
67.7
Minimum Order Quantity
1
Pallet Layer Quantity
1
Pallet Total Quantity
3
Case Pack Quantity
1
