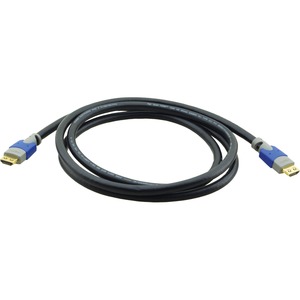

C−HM/HM/PRO HDMI cable delivers high−speed, high−performance digital video and audio with impeccable impedance stability, low skew, high signal integrity, and noise immunity for up to 4K@60Hz (4:4:4). With pro−grade heavy−duty construction, triple−shield bonded pairs and K−Lock connectors, PRO series cables are robust and reliable for the most demanding applications.
- Max. Data Rate — 18Gbps.
- Max. Resolution — 4K@60Hz (4:4:4).
- Deep Color — Supports 24–bit, 30–bit, 36–bit and 48–bit (RGB or YCbCr) color depths. Best for multimedia applications or home cinema and surround systems.
- Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
- High Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
- K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
- Shield — Triple overall shield against EMI/RFI interference
- Varied Selection of Lengths — Available in versions of 0.9 to 19.8m (3, 6, 10, 15, 25, 35, 50 and 65ft).
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
TYPE : High–speed HDMI cables
RESOLUTIONS SUPPORTED : 480i, 480p, 720p, 1080i, 1080p
CONDUCTOR AWG : 3–25ft cables use 26 AWG (7/0.16) , 35 & 50ft use 24 AWG (7/0.2)
SHIELD : Dual overall shield against EMI/RFI interference, (a) Al–Mylar, (b) tinned copper
CABLE OD (MM) : 3–35ft: 8 ± 0.19mm , 50–65ft: 9.5 ± 0.25mm
MOLDED CONNECTORS : Yes
GOLD-PLATED CONNECTORS : Yes
STANDARDS COMPLIANCE : HDR, HDCP
FLAME TEST : CL2
