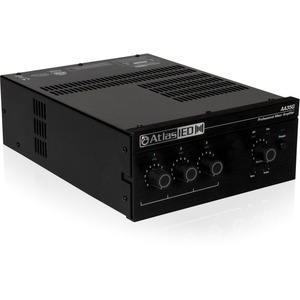

The AtlasIED AA35G, a 3 input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems and in applications where music on hold (MOH) plus paging is required.
The AA35G is a three input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required.
With one microphone input and two stereo line inputs, the AA35G will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. A dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on hold applications. 70.7V, 100V, and 8Ω outputs are provided.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Frequency Response : 50Hz - 20kHz
Connector Type: Phoenix and RCA
Output Power: 35 Watts
Rack Units: 2 high 1/2 wide
Height: 4.1" (104mm) Including Feet
Width: 9.5" (241mm)
Depth: 13.9" (353mm) Front of Knobs to Back Panel
Shipping Weight: 8 lbs 2 oz (3.7kg)
Safety Listed: 60065-ROHS 2006 Compliant
Voltage Compatibility: Universal
