VIDEO

• Video Input: Network video over Ethernet via RJ45 port or SFP port
• Video Output: HDMI, DVI-D (through adapter)
• Formats: HDMI, DVI-D (through adapter), HDCP content protection support
• Progressive Input Resolutions:
• HDMI and DVI (Progressive)
• Matched to inputs or scaled to 720x480@59.94Hz (480p59.94),1280x720@50Hz (720p50), 1280x720@59.94Hz (720p59.94), 1280x720@60Hz (720p60), 1280x800@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@59.94Hz (1080p59.94), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 3840x2160p@30Hz (2160p30), 3840x2160p@60 Hz (2160p60)

AUDIO

• Input Signal Types: Network PCM and AES-67 audio over Ethernet via RJ45
• Output Signal Types: Embedded audio on DVI-D or HDMI (through adapter)
• HDMI Audio Formats: 8ch PCM
• Analog Audio Formats: Stereo 2-channel
• Digital-to-Analog Conversation: 16-bit 48 kHz (matched to Encoder settings)

LATENCY

• Latency: 17-ms at 60 fps

Note: To calculate an end-to-end latency value, add the given Decoder latency (shown above) to your Encoder’s latency (which is provided in the Encoder’s Specifications sheet).

COMMUNICATIONS

• Ethernet:
• P0
• 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
• P1
• 1 Gbps SFP port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling)

PORTS

• +12V 2A: One 12 Volt DC power input.
• P0
• 8-wire RJ45 female
• 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
• POE + Powered Device support
• Provides network connection to the Encoders and Decoders
• P1
• SFP port (SFP fiber transceiver or direct attach cable not included) for JPEG2000 compressed networked AV video
• IR
• 2-pin terminal Phoenix connector
• Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter may be necessary (not included))
• RS232
• 3-pin terminal Phoenix connector
• Provides a serial control interface. Full duplex communication. Available terminal speed settings: 9600-115200 baud rate
• AUDIO
• 5-pin terminal Phoenix connector
• Provides user-selectable balanced/unbalanced output. Dedicated audio output
• HDMI OUT: HDMI video output
• USB connectors (front panel): One USB-A control inputs
• IR IN (front panel):
• 3-pin terminal Phoenix connector
• Provides Infrared (IR) input only (33-60 kHz; typically 39 kHz). Receiver required (not included)

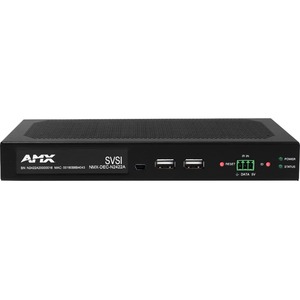

CONTROLS AND INDICATORS — FRONT PANEL

• RESET Button
• Recessed pushbutton
• Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
• ID Button
• Recessed pushbutton
• Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command)
• POWER LED
• On solid (green) when operating power is supplied (via PoE or local power supply)
• This activity is also shown by the PWR LED on the rear panel
• STATUS LED
• On flashing (green) when there is software activity
• This activity is also shown by the STAT LED on the rear panel

CONTROLS AND INDICATORS — REAR PANEL

• PWR LED: Same as POWER LED described above
• HDMI LED: On (green) when there is a connection to a valid video source
• STAT LED: Same as STATUS LED described above
• STRM LED: On (green) when the unit is streaming video

POWER SUPPLY

• Power Supply, External, Not Included: 3.0 Amp @ 12 Volts DC; 100-240 Volts AC power supply; not included in shipment. NMX-ACC-N9313 (FGN9313)
• Power over Ethernet (PoE), External: Can be powered via a PoE switch or other equipment with a PoE source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1)

GENERAL

• Dimensions (HWD): 1.05" x 7.888" x 5" (2.67 cm x 20.04 cm x 12.7 cm)
• Weight: 1.54 lbs (0.7 kg)
• Mounting Options
• Stand alone, surface mount, wall mount, or rack mount
• Surface and wall mounting requires (not included): NMX-ACC-N9101 (FGN9101), Mounting Wings for SVSI N-Series Encoders and Decoders
• Rack mounting requires one of the following (not included): NMX-ACC-N9102 (FGN9102), 1RU Rack Shelf for Two Side-by-Side for SVSI N-Series Encoders and Decoders
• Regulatory Compliance: FCC, CE, and NTRL
• Recommended Accessories
• NMX-ACC-N9101 (FGN9101), Mounting Wings for SVSI N-Series Encoders, Decoders and Audio Transceiver
• NMX-ACC-N9102 (FGN9102), 1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders, Decoders and Audio Transceiver
