General
Topology: Line interactive
Configuration: Rackmount / Wallmount
Color: Black and silver
Rating (VA/Watts): 1000/770
Diagnostics: Full system self-test at power up
Dimensions (H x W x D, inches): 3.4 (2U) x 17.3 x 16.0
Dimensions (H x W x D, mm): 86.2 x 440 x 405
Weight (kg): 15
Weight (lbs): 33
Warranty: 3 years on electronics, 3 years on batteries with registration
Rail Kit Included: Two-post rail kit, four-post rail kit, wall-mount kit
Remote Emergency Power off (REPO): ROO/RPO: Rear terminal block connector for remote on/off and power off
Contents
(Ships with the following items):

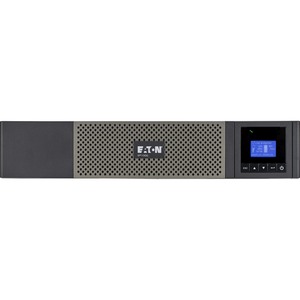

5P rackmount compact UPS
Quick start guide
USB cable
RS-232 serial cable
Multi-purpose rail kit
Efficiency: up to 95.9%

Electrical Input
Connection: (1) NEMA 5-15P
Input Cord: 6 feet (1.8 meters)
Input Voltage Range: 89–151 Vac (adjustable to 70–153 Vac)
Nominal Voltage: 120 Vac (adjustable to 100/120/125Vac)
Frequency: 50/60 Hz (auto-sensing)
Frequency Range: 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode

Electrical Output
Nominal Voltage: 120V default (100/120/125V)
Output Receptacles: (10) NEMA 5-15R
On Utility Voltage Regulation: 102–132 Vac
On Battery Voltage Regulation: -10%, +6% of nominal
Output Frequency: 50/60 Hz ±0.1 % (autosensing)
Load Segments: Group 1: (3) 5-15R outlets; Group 2: (3) 5-15R outlets
view load segments application note

Battery
Battery Description: Sealed, lead-acid; maintenance free
Battery Management: ABM technology and temperature-compensated charging method (user selectable), automatic battery test and deep discharge protection
Extended Battery Capability: None; See Eaton 5PX UPS for extended runtimes
Start On Battery: Allows start of UPS without utility power (First time start must be on AC power)

Communications
User Interface: LCD graphical display
LEDs: Load protected, on battery and fault
Communication Ports: RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
Communications Card Slots: One slot; Network Card-MS is optional
Power Management Software: Eaton Intelligent Power Manager (included)

Environmental & Standards
RoHS Compliance: Yes
Heat Dissipation (BTU): Line: 106, Battery 500
Audible Noise: <45 dB at 1 meter
Operating Temperature: 0 to 35°C (32°F to 95°F)
Performance - Safety - EMC: UL 1778, UL497A
Safety markings: cULus, CE
EMC Markings: IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B
Storage Temperature: -15°C – 40°C (5°F – 104°F)
Relative Humidity: 0–90% non-condensing
Altitude: Up to 10,000 ft (3000m) without de-rating
