Specifications

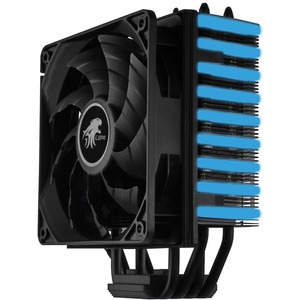

Model Name: LPANL12

Compatible Socket: : Intel^® LGA 775/1150/1151/1155/1156/1366/2011/2011-3 AMD^® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+

Heat Sink Dimension: 126(L) x 40(W) x 161.7(H) mm

Net Weight: 645g (w / fan)

Heat Pipe: 4 x Ø6 mm

Material: Copper Heat Pipes/Aluminum Fins

Fan Dimension: 120 x 120 x 25 mm

Fan Speed:

• 600 ~ 1800 RPM
• 400 ~ 1000 RPM (w/ fan adaptor )

Fan Air Flow:

• 29.33 ~ 75.41 CFM ; 49.83 ~ 128.12 m³/h
• 16.76 ~ 46.09 CFM ; 28.47 ~ 78.31 m³/h (w / fan adaptor )

Fan Air Pressure:

• 0.36 ~ 2.41 mm-H₂O
• 0.13 ~ 0.90 mm-H₂O (w/ fan adaptor )

Fan Rated Voltage: 12 V

Fan Noise Level:

• 17 ~ 33 dBA
• 14 ~ 19 dBA (w/ fan adaptor )

Fan Connector: 4 pin PWM

Accessory

:

1 x LED remote control; 1 x fan speed reduction adaptor; 1 x molex adaptor
