SPECIFICATIONS

VIDEO

• Digital Video Input
• HDMI 2.0, DVI-D* (through adapter), Dual-Mode DisplayPort (DP++)*

*These signal types are supported through a passive adapter

• Analog Video Input: HD-15 VGA
• Video Output
• Network video over Ethernet via RJ45 port or SFP via 1G SFP+ port, HDMI, DVI-D*

*These signal types are supported through a passive adapter

• Formats
• HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP 2.2 content protection support, RGBHV
• DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
• Progressive Input Resolutions
• Supports 4K30 4:2:0 and most common HD resolutions up to 1920x1200
• See NMX-ENC-N2312 Installation Manual for all supported resolutions
• HDMI and DVI (Progressive)
• Pixel clock between 27 MHz – 300MHz
• Minimum resolution of 720x480p60
• Maximum horizontal resolution of 4096 or a vertical resolution of 2160*
• Common acceptable resolutions include:
  720x480p60 – 480p, 720x576@50, 800x600p60, 1024x768p60, 1280x720@60Hz - 720p60, 1600x1200@60Hz, 1920x1080@60Hz - 1080p60, 3840x2160(4:2:0)@30Hz - UHD30 aka 4K30, 4096x2160(4:2:0)@30Hz - DCI 4K30
• Interlaced Input Resolutions
• Supports 1080i60
• See NMX-ENC-N2312 Installation Manual for all supported resoltuions
• HDMI and DVI (Interlaced)
• 1920x1080@50Hz - 1080i50
• 1920x1080@60Hz - 1080i60

Note: Interlaced resolutions will be de-interlaced if scaled on the decoder; otherwise, the interlaced signal will pass through to the display

• Analog Input Resolutions
• Supports most common HD resolutions up to 1920x1200
• See NMX-ENC-N2312 Installation Manual for all supported resoltuions
• VGA
• Pixel clock between 27 MHz - 165 MHz
• Minimum resolution of 640x480
• Maximum horizontal resolution of 1920 or a vertical resolution of 1200
• Common acceptable resolutions include:
  640x480p60, 720x480p60 – 480p, 720x576@50,800x600p60, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz (reduced blanking)

Note: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz

The N2312 Encoder does not accept Composite or SVideo (YC)

• Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels
• Color Space: 4:2:0 4K30, 4:2:2 – HD
• LocalPlay/HostPlay: 8 playlists
• HostPlay: 1 image/list
• Note: Jumbo Frames Required
• Video Wall Construction: Supported within the NMX-DEC-N2322, the N2300 Series is not compatible with SVSI Windowing Processors at this time
• Network Video Recording: Not compatible with SVSI NVR at this time

AUDIO

• Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
• Output Signal Types: Ethernet, Embedded audio on HDMI or DVI-D (through adapter)
• HDMI Audio Formats: 8ch PCM
• Analog Audio Format: Stereo 2-channel
• Analog-To-Digital Conversion: 48 kHz

KEYBOARD AND MOUSE

• Keyboard & Mouse: Connect the Decoder to the keyboard and mouse, and an N2300 Series Encoder to the PC being controlled

LATENCY

• Latency
• 17-ms at 60 fps for 1920x1080 and lower resolutions
• 34-ms at 30 fps for 4K30

NOTE: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency. Scaling adds one frame of latency (17ms at 60fps)

• Switching: Up to 1.5s delay, not seamless

BANDWIDTH

• Bandwidth: Approximately 160 Mb/s

Note: Minimum bandwidth is 50 Mb/s for resolutions <= 1080p60

COMMUNICATIONS

• Ethernet - PO
• 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
• Ethernet - P1
• 1 Gbps port which accepts compatible fiber transceivers or direct attach cables, DHCP, Auto IP, and static IP
• HDMI: HDCP, EDID management

PORTS

• +12V 2A: One 12 Volt DC power input
• PO
• 8-wire RJ45
• 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
• Provides network connection, network AV video, and power to the Encoders and Decoders PoE power
• P1
• 1-Gbps SFP+ port (SFP+ fiber transceiver or direct attach cable not included)
• Provides network connection and networked AV video
• IR IN (front panel): 3-pin terminal Phoenix connector. Provides Infrared (IR) input only and passes signal back to connected decoder (33-60 kHz; typically 39 kHz) IR receiver is necessary (not included)
• IR OUT
• 2-pin terminal Phoenix connector
• Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter is necessary (not included)
• RS232
• 3-pin terminal Phoenix connector which provides a serial control interface. Full duplex communication.
• Available terminal speed settings: 1200-115200 baud rate
• AUDIO
• 5-pin terminal Phoenix connector which provides userselectable balanced/unbalanced input
• Dedicated audio input
• HDMI OUT: HDMI video output (passive pass-through from HDMI IN)
• HDMI IN: HDMI video input
• VGA IN: DB15 analog input

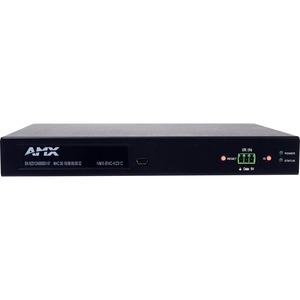

CONTROLS AND INDICATORS – FRONT PANEL

• RESET Button
• Recessed pushbutton
• Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
• ID Button
• Recessed pushbutton
• Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command)
• POWER LED
• On solid (green) when operating power is supplied (via PoE or local power supply)
• This activity is also shown by the PWR LED on the rear panel
• STATUS LED
• On flashing (green) when there is software activity
• This activity is also shown by the STAT LED on the rear panel

CONTROLS AND INDICATORS – REAR PANEL

• PWR LED: Same as POWER LED described above
• HDMI LED: On (green) when there is a connection to a valid HDMI source but will not light for VGA source
• STAT LED: Same as STATUS LED described above
• STRM LED: On (green) when the unit is streaming video
• FAN: None

POWER SUPPLY

• Power Supply, External, Optional: 2.0 Amp @ 12 Volts DC; 100-240 Volts AC power supply; optional NMX-ACC-N9312 (FGN9312)
• Power over Ethernet (PoE), External, Optional: Can be powered via a PoE switch or other equipment with a PoE source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1)

NOTE: In order for the unit to receive Power over Ethernet (PoE), it must be connected to a switch or other equipment that has a PoE PSE (Power Sourcing Equipment) port

Warning: Do not run wiring that is connected to a PoE PSE port outside of the building where the PSE resides. It is for intra-building use only

ENVIRONMENTAL

• Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 90% RH (non-condensing)
• Heat Dissipation: Up to ~44 BTU/hr

GENERAL

• Dimensions (HWD): 1.05” x 7.888” x 5.5” (2.67 cm x 20.04 cm x 13.8 cm)
• Weight: 1.6 lbs (0.66 kg)
• Mounting Options
• Stand alone, surface mount, wall mount, or rack mount
• Surface and wall mounting requires (not included):
• NMX-ACC-N9101 (FGN9101), Mounting Wings for SVSI N-Series Encoders and Decoders
• Rack mounting requires one of the following (not included):
• NMX-ACC-N9102 (FGN9102), 1RU Rack Shelf for Two Side-by-Side for SVSI N-Series Encoders and Decoders
• NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
• Regulatory Compliance: FCC, CE, and NTRL
• Recommended Accessories
• NMX-ACC-N9312 (FGN9312), Power Supply 12V External
• NMX-ACC-N9382 (FGN9382), 1RU Power Supply 16-Channel 12V for up to 16 SVSI N-Series Encoders and Decoders
• NMX-ACC-N9101 (FGN9101), Mounting Wings for SVSI N-Series Encoders and Decoders
• NMX-ACC-N9102 (FGN9102), 1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders and Decoders
• NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
