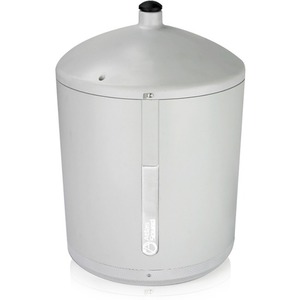

The AtlasIED PM8FA features the familiar response and dispersion of AtlasIED’s model FA138 high performance 8” Strategy Series driver. This loudspeaker is the same FA Series device used in AtlasIED’s successful model FAP82T ceiling loudspeaker package. Mounted down-firing in an attractive enclosure, the PM8FA provides natural sounding, wide coverage for low height installations while retaining impressive full range frequency response for both music and paging applications.
Attaching a PM8FA to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTEC TM brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Technical Specifications
Power Rating:
100 Watts Peak,
70 Watts RMS
70.7 Taps:
1.9, 3.8, 7.5, 15, 30, & 60 Watts
Frequency Response:
60 Hz – 20 kHz (±5 dB)
Sensitivity(1W/1M):
90 dB
Dispersion Angle:
100 ̊
Woofer Mag. Wt.:
21 oz. (580 g)
Woofer:
8" Poly Cone & SBR Surround
HF Driver:
Coaxially Mounted PEI Dome Tweeter
Dimensions:
Diameter - 12.25" (311.15 mm)
Overall Height - 16.62" (422.148 mm)
Enclosure Volume:
1075 In 3 (17,616.09 cm 3 )
Weight:
25 lbs (11.34 kg)
