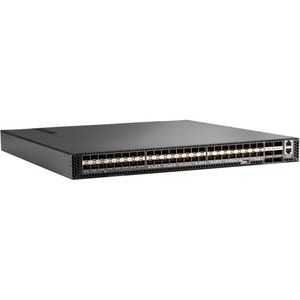

The HPE Altoline 6920 Switch Series is an x86-based OCP certified, open-networking, disaggregated family of low-latency 10GbE data center switches in a 1U form factor. Perfect for deployment in web-scale environments as a 10GbE server access switch; optimized for data center hot/cold aisle deployments with reversible airflow. Hardware support for VXLAN is ideal for deployment in multi-tenancy and overlay environments. Take advantage of the streamlined design and ONIE boot loader to deploy a choice of network operating systems with the freedom to select the management and orchestration tools.
What's new
- High 10GbE port density and low latency for demanding applications.
- OCP-certified, ONIE boot loader, choice of network OS, easy installation.
- Intel x86 CPU, Open-networking and disaggregated solution.
- VXLAN for efficient network virtualization overlay solutions.
- 10GbE/40GbE, redundant fans and power supplies for data center deployments.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Operating humidity range: 5 to 95% (noncondensing)
Input voltage: 90 - 264 VAC, rated (depending on power supply chosen)
Ports: (48) SFP+ 1/10GbE ports; (6) QSFP+ 40GbE ports
Latency: 40 Gbps Latency: > 0.6 µs
Memory and processor: Intel Atom C2538 quad-core x86 processor @ 2.4 GHz; 8 GB DDR3 SDRAM; Packet buffer size: 12 MB; 16 GB SD Card
Management features: Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP
Throughput: up to 1 Bpps
Operating temperature range: 0 to 40°C
Routing/switching capacity: 1440 Gbps
Power consumption: 315 W (maximum)
Power supply name: 2 x PSUs
