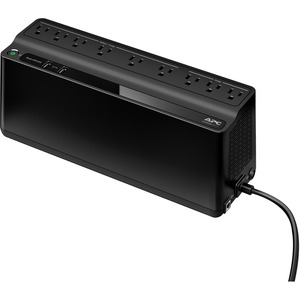

Back-UPS BE850M2, 850VA, 2 USB charging ports, 120V

The Back-UPS battery backup offers guaranteed power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. Models supply battery backup during outages and unsafe voltage fluctuations, as well as provide protection from damaging surges and spikes. They’re available in 'tower' or 'floor' styles, and together with a variety of standard features, they are the perfect choice to protect your data and keep you connected.

Manufacturer Part Number
BE850M2
EAN/UPC
0731304325260,731304325260
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Output:

  • Output power capacity

    450Watts / 850VA
  • Max Configurable Power (Watts)

    450Watts / 850VA
  • Nominal Output Voltage

    120V
  • Output Frequency (sync to mains)

    50/60 Hz +/-1 Hz
  • Topology

    Standby
  • Waveform type

    Stepped approximation to a sinewave
  • Output Connections

    (3) NEMA 5-15R (selector_surgetitle)

    (6) NEMA 5-15R (Battery Backup)

  • Transfer Time

    6ms typical : 10ms maximum
Input:
  • Nominal Input Voltage

    120V
  • Input frequency

    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections

    NEMA 5-15P
  • Cord Length

    5ft ( 1.52meters )
  • Input voltage range for main operations

    92 - 139V
  • Number of Power Cords

    1
Batteries & Runtime:
  • Battery type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time

    8hour(s)
  • Expected Battery Life (years)

    2 - 5
  • Battery Volt-Amp-Hour Capacity

    84
  • Runtime

    View Runtime Graph

    View Runtime Chart

  • Efficiency

    View Efficiency Graph

Communications & Management:
  • Interface Port(s)

    USB
  • Control panel

    LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault
  • Audible Alarm

    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering:
  • Surge energy rating

    354Joules
Physical:
  • Maximum Height

    5.47inches ( 139mm , 13.9cm )
  • Maximum Width

    12.87inches ( 327mm , 32.7cm )
  • Maximum Depth

    4.13inches ( 105mm , 10.5cm )
  • Net Weight

    9.04lbs. ( 4.1kg )
  • Shipping weight

    9.7lbs. ( 4.4kg )
  • Shipping Height

    7.72inches ( 196mm , 19.6cm )
  • Shipping Width

    16.38inches ( 416mm , 41.6cm )
  • Shipping Depth

    6.61inches ( 168mm , 16.8cm )
  • Master Carton Units

    2.0
  • Master Carton Weight

    21.61lbs. ( 9.8 )
  • # of Layers per Pallet

    5.0
  • # of Units per Layer per Pallet

    16.0
  • Pallet Weight

    912.71lbs.
  • Units per Pallet

    80.0
  • SCC Codes

    1073130432526 7
Environmental:
  • Operating Environment

    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity

    0 - 95% non-condensing %
  • Operating Elevation

    0-10000ft ( 0-3000meters )
  • Storage Temperature

    -15 - 45 °C
  • Storage Relative Humidity

    10 - 90 %
  • Storage Elevation

    0-50000ft ( 0-15000meters )
  • Audible noise at 1 meter from surface of unit

    45.0dBA
Conformance:
  • Approvals

    ENERGY STAR (USA)
  • Standard warranty

    3 years repair or replace
