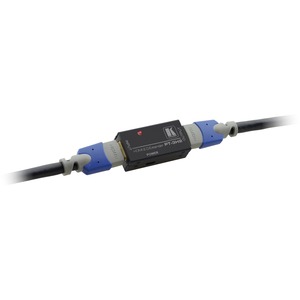

The PT−3H2 is a 4K@60Hz (4:4:4) equalizer and line driver for HDMI 2.0 and HDCP 2.2 signals. The unit extends the range when using long HDMI cables.
- Max. Resolution — Up to 4K@60Hz (4:4:4).
- HDTV Compatible.
- HDCP 2.2 & HDMI 2.0 Compliant.
- HDMI Support — ARC, CEC.
- Range — 10m to input, 10m from output, total 20m (65ft) at 4K60 (4:4:4); 25m to input, 15m from output, total 40m (130ft) at 4K60 (4:2:0); 30m to input, 15m from output, total 45m (150ft) at 1080p60.
- External Power Supply Option.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
INPUT/OUTPUT
- HDMI connectors
MAX. DATA RATE
- 18Gbps (6Gbps per graphic channel)
MAX. RESOLUTION
- Up to 4K@60Hz (4:4:4)
MAX. RANGE
- 4K@60 4:4:4 — 20m (115ft); 10m to PT–3H2, 10m to display
- 4K@60 4:2:0 / 4K@30 — 40m (130ft); 25m to PT–3H2, 15m to display
- 1080p@60 — 45m (150ft): 30m to PT–3H2, 15m to display
STANDARDS COMPLIANCE
- HDMI2.0, HDCP2.2
HDMI SUPPORT
- ARC, CEC
POWER CONSUMPTION
- 5V DC, 150mA
OPERATING TEMPERATURE
- 0°C to +70°C (32°F to 158°F)
OPERATING HUMIDITY
- 10% to 85% RH (no condensation)
STORAGE TEMPERATURE
- –10°C to +80°C (14°F to 176°F)
STORAGE HUMIDITY
- 5% to 90% RH (no condensation)
EXTERNAL POWER SOURCE (OPTIONAL)
- 5V, 150mA on micro–USB connector
PRODUCT DIMENSION
- 14.60cm x 2.00cm x 9.50cm (5.75" x 0.79" x 3.74" ) W, D, H
PRODUCT WEIGHT
- 0.5kg (1.1lbs) approx
SHIPPING DIMENSION
- 24.60cm x 8.60cm x 20.10cm (9.69" x 3.39" x 7.91" ) W, D, H
SHIPPING WEIGHT
- 1.1kg (2.4lbs) approx
