HDBaseT Scaler with HDMI and Analog Audio Outputs

HDBaseT Scaler with HDMI and AnalogAudio Outputs

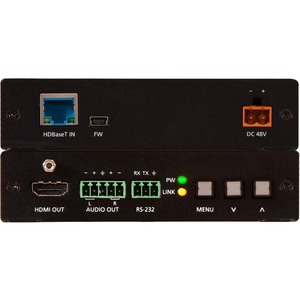

The Atlona AT-HDVS-150-RX is an HDBaseT™ scaler receiver for HDMI transmission over category cable. It receives AV signals up to 1080p/60Hz or 1920×1200 video with embedded multi-channel audio and control signals at distances up to 230 feet (70 meters). Features include balanced analog audio de-embedding, RS-232 control, and Power over Ethernet for compatible transmitting devices. The receiver offers advanced scaling capabilities including image adjustment capability and an Auto-set feature for matching incoming signals to the display’s native resolution. Designed for use with the AT-HDVS-150-TX transmitter, the transmitter/receiver pair enables auto display on/off, auto-switching, third-party control, and other features. The built-in HD video scaler works with matrix switchers to optimize source signals with different resolutions to a display’s native resolution. The AT-HDVS-RX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.

The HDVS-150 maintains all capabilities the HDVS series is known for and adds industry-standard Power over Ethernet for full HDBaseT certification. The HDVS-150 Series is a simple audio visual system with auto-switching for HDMI and VGA inputs, projector on/off control, analog audio de-embedding, volume control, and a scaler. Much more than an extender system, it provides a complete system for small spaces like huddle rooms and teaching spaces with 2 or 3 sources.

The AT-HDVS-150-RX is ideal for use in:

  • Complete system applications with the AT-HDVS-150 Series transmitters to provide a 2 or 3-input AV system supporting HDMI and VGA signals, auto-switching, display control, and scaling plus 230 foot (70 m) extension to displays

Manufacturer Part Number
AT-HDVS-150-RX
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Resolution
IN: 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@25/29/30/50/59.94/60Hz, 576p, 576i, 480p, 480i
1920×1200RB, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1280×1024, 1280×960, 1280×800, 1280×768, 1152×854, 1024×768, 800×600, 720×400, 640×480
OUT: 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@25/29/30/50/59.94/60Hz
1920×1200, 1680×1050, 1680×1200, 1400×1050, 1366×768, 1280×1024, 1280×800, 1024×768
Color Space: YUV, RGB
Chroma Subsampling: 4:4:4, 4:2:2
Color Depth: 8-bit, 10-bit, 12-bit
Audio
Analog: PCM 2Ch (De-embedded)
HDMI OUT & HDBaseT IN: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit Rate: up to 24-bit
Distance
CAT5e/6: up to 60 meters: up to 197 feet
CAT6a/7: up to 70 meters: up to 230 feet
HDMI IN/OUT: up to 10 meters: up to 30 feet
Signal
Bandwidth: 6.75 Gbps
CEC: No
HDCP: Compliant – 1.4
Temperature
Operating: 0°C to 40°C: 32°F to 104°F
Storage: -20°C to 60°C: -4°F to 140°F
Humidity: 20 to 90% non-condensing
Power
Consumption: 15W (varies per paried transmitter)
Supply: Input: AC100-240V ~ 50/60Hz
Output: DC 24V/2.7A
Dimension
H x W x D: 30 x 122 x 125 (mm): 1.18 x 4.8 x 4.92 (inch)
Weight
Device: 0.31 kg: 0.67 lbs
Certification
Unit: CE, FCC
Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC
