Part Number: 45-492-216

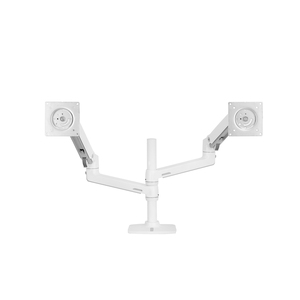

Description: LX Dual Monitor Arm, Stacking (white)
Includes two (2) LCD arms and extensions, pole, desk clamp
Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

• Steel and aluminum construction offers greater durability and enhanced aesthetics
• Snap-fit cap secures interface of arms to extensions for greater stability

New clamp and grommet mount base ensures greater stability of display and arm
† To facilitate stacking of monitors, maximum outside height of display can be no more than 14" (35 cm). Most monitors with screens of 24" or less fit within this specification. Larger screen sizes are allowable when positioning displays side by side
* Weight Capacity: Maximum individual LCD weight = 7 to 20 lbs (3.2 to 9.1 kg)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Desk clamp attaches to edge up to 2.6" (66 mm) thick
A separately ordered grommet mount accessory (98-035) is available to attach the arm through a hole in the desktop
Shipping Dimensions: 19.25" x 15.25" x 9" (487 x 387 x 229 mm)
Shipping Weight: 16 lbs (7.2 kg)
Warranty: Ten (10) years
