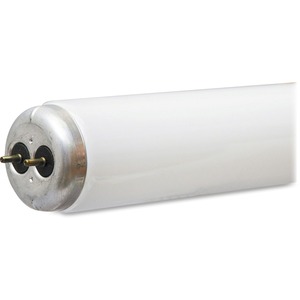

20-watt, T12 fluorescent bulb is perfect for illuminating sizable spaces throughout your home. Medium bi-pin base connects to fixtures in your garage, basement or rec room. 24" bulb provides 1,200 lumens with a 4,100 Kelvin rating. Bulb is designed to last up to 9,000 hours.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
GENERAL CHARACTERISTICS
Base Description
:
Medium Bi-Pin
Base Type
:
Pin/Plug-In
Mercury Content
:
4.95 mg
Mercury-Picogrm per mean lm hr
:
478.3
Starting Temp (MIN) C-degrees
:
10 °C
Bulb Material
:
Soda lime
Rated Life Hours-nominal
:
9000 h
Primary Application
:
Garage & Basement
Product Technology
:
Linear Fluorescent
Base
:
G13
Bulb Shape
:
T12
ELECTRICAL CHARACTERISTICS
Current Crest Factor (MAX)
:
1.7
Open Circuit Voltage (rapid start) Min @ Temperature
:
157.00 V @ 10 °C
Cathode Resistance Ratio - Rh/Rc (MIN)
:
4.250
Cathode Resistance Ratio - Rh/Rc (MAX)
:
6.500
Rated power (Watts)
:
20 W
PHOTOMETRIC CHARACTERISTICS
Mean Lumens nominal
:
1150 lm
Nominal Initial Lumen per Watt
:
60
Initial Lumens-nominal
:
1200 lm
Color Rendering Index-CRI
:
60
Color Temperature
:
4100 K
DIMENSIONS
Bulb Diameter (DIA)
:
1.59 in
Bulb Diameter (DIA)
:
1.41 in
Diameter
:
1.5 in
End of Base Pin to Pin
:
23.67 in
Face to End of Opposing Pin (B)
:
23.5 in
Face to End of Opposing Pin (B)
:
23.4 in
Nominal Length
:
24.0 in
PACKAGING INFORMATION
Alternative Unit Of Measure
:
CASE
Standard Package Quantity
:
24
Ean UPC
:
043168980517
Standard Package GTIN
:
00043168800464
Length
:
25.13 in
Width
:
11.26 in
Height
:
9.02 in
Volume
:
1.47704 cuft
Gross Weight
:
10.04 lb
Pack Level Description
:
Case
Sales Unit
:
Case
UCC
:
043168800464
