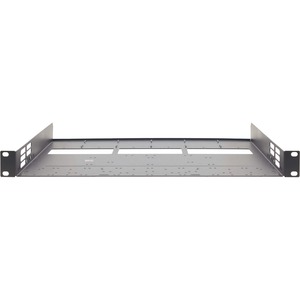

The RK−6PS is a 19” 1U rack adapter for mounting a combination of several Kramer Desktop and/or TOOLS. Up to six PS−504 or PS−1202 power supplies can be mounted to the back of the unit with optional RK−PS1 mounting brackets.
- Mounts Wide Variety of Configurations — Mounts 6.5", 1/2–, 1/4–, 1/8–19" 1U units in various mixes and optional blank panels and power supplies.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F)
HUMIDITY: 10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES: 20 flat head M3x5 screws, 4 pan head M3x8 screws, 1 half–19" 1U blank panel (P/N 60–900013), 8 black cable ties
OPTIONS: PNL–BLANK/1/4U–19" (60–900014), PNL–BLANK/1/8U–19" (60–900015), PNL–BLANK/ SHORT6.5"1U With two 6.5” devices (60–900016), PNL–BLANK/LONG6.5"1U With one 6.5” device and a short blank (60–900017), RK–PS1 rack adapter for power supply
OPTIONAL POWER SUPPLIES: PS–504/US/EU/GB, PS–1202/US/EU/GB, PS–1202 (general), all with a 75cm C14 power cord cable, 100–240V AC, 50/60Hz
PRODUCT DIMENSION: 19" x 13.39 x 1U (43.6cm x 34.00cm 4.36cm) W, D, H
