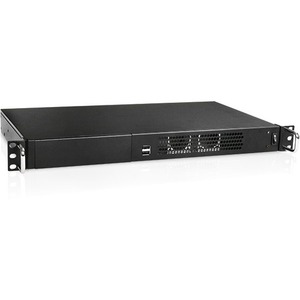

Model Number: D-1101-ITX
RoHS Compliance Version: Yes
Form factor: 1 U
Standard Drive Bays: 2.5" Drive (internal): 3 or
3.5" Drive (internal): 1
5.25" Drives: 1
Indicators: Power, HDD
Switches: Power
Supported PSU Type: 1U Flex
Expansion Slots: 1
Material of Front Bezel: SECC 1.0mm
Material of Main Chassis: Steel
Color of Front Bezel: Black
Color of Main Chassis: Black
Front Connector: 2x USB 2.0
Motherboard Size: 6.7 x 6.7 (mini-ITX)
Optional Fan:: 40mm x2
Dimensions (WxHxD): 19.00" x 1.75" x 10.95"
482.6 mm x 44.4 mm x 278.1 mm

Notes:

• if 5.25" device is in place and its depth is less than 142mm, one internal 2.5" HDD can be installed. if 5.25" device is longer than 142mm, no internal 2.5" or 3.5" HDD can be installed.
• either one internal 3.5" or three 2.5" HDDs can be installed if no 5.25" device in place.
• standard I/O shield will NOT fit any 1U chassis.
• for PCI riser, use DD-611-C5 (search for DD-611-CX).
• for PCIe x16 riser, use DD-666-C5 (search for DD-666-CX).
