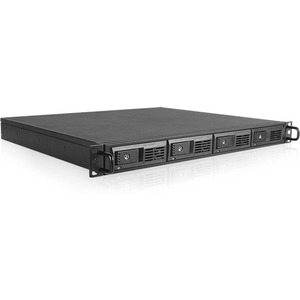

DAGE104UTL-MS is an external 1U-4 bay trayless hot-swappable SAS/SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 4 hard drives for RAID configurations in 1U form factor. This 1U-4 bay external SAS/SATA JBOD is designed with a high quality miniSAS (SFF8088) connectors. Two 40mm ball bearing fans offer long lasting and enhanced thermal cooling solution. DAGE104UTL-MS provides maximum storage and performance to high density storage system.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Model Number: DAGE104UTL-MS
RoHS Compliance Version: Yes
Form Factor: 1U
Host Interface: 1x miniSAS (SFF8088)
HDD Interface: 3.5" SAS I/II & SATA I/II/III
Hotswap 3.5": 4
LED Display: Power and HDD Activity
Material: Steel
Main Color: Black
Power Supply: 150W Open-frame PSU
Raid Level: Configured by Host Controller
Cooling Fan: 2x40mm
Dimensions (WxHxD): 19.00" x 1.75" x 15.00"
482.6 mm x 44.5 mm x 381.0 mm
