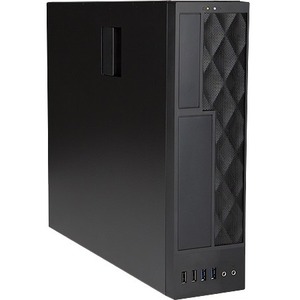

11.9L Small Form Factor

Innovative thermal design without ventilation holes on the top, bottom or side panels. Placement in both Vertical and Horizontal stance.

Manufacturer Part Number
CE052-BLACK-300W
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Case Size: S.F.F Slim Chassis
Color:
External Drive Bays: 5.25" x 1, 3.5" x 1 (Up to 92 mm)
Internal Drive Bays: 3.5" x 1, 2.5" x 1
Front Ports:USB 3.0 x 2, USB 2.0 x 2, HD Audio
Dimensions (H x W x D)w/o Front Panel:334 x 96 x 370 mm (11.9L)13.1" x 3.8" x 14.6"
MB Form Factor: Micro ATX / Mini-ITX
I / O Expansion Slots: Low Profile Slot x 4
Power Supply: Standard TFX 12V
Thermal Solution: 90 mm Front Fan x 1
Safety: Meets RoHS, CE and FCC Class B Requirements
Security: Padlock Loop / Kensington Slot
Optional:
‧Removable Air Filter
‧Chassis Intrusion Switch
‧Tool-Free Side Cover
‧Key Lock Side Panel
