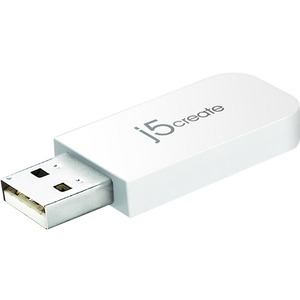

The j5create Wireless JUE303 AC600 Dual Band USB2.0 adapter gives you the ability to wirelessly connect your notebook or desktop computer to a network. It is complaint with the latest wireless technology, IEEE 802.11ac and its dual band capability allows it to simultaneously search 2.4G and 5G networks. It supports WPA, WPA2 encryption technology and is compatible with Windows XP/7/8 and Mac OSX 10.4~10.9.The JUE303 allows you to enjoy a fast wireless network connection
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Protocol standards: IEEE 802.11n ； IEEE 802.11g ； IEEE 802.11b IEEE ； 802.11ac
Interface: USB 2.0
Transmission rate:
- 11b：1/2/5.5/11Mbps
- 11g：6/9/12/18/24/36/48/54Mbps
- 11n：up to 150Mbps
- 11ac：up to 433Mbps
Frequency range:
- 2.412 ~ 2.4835 GHz
- 5.180 ~ 5.320GHz
- 5.500 ~ 5.700GHz
- 5.745 ~ 5.825GHz
Operating Channels:
- 1 ~ 14（2.4G）
- 36 ~ 165 (5G)
Transmit power: 18 dBm （Typical）
Spread-spectrum technology: DSSS
Modulation type: CCK / OFDM / BPSK / QPSK / QAM
Receiver Sensitivity:
- 11n： -68dBm@130M ； -68dBm@108M
- 11g： -69dBm@54M
- 11b： -85dBm@11M
- 11ac：-59dBm@433M
Encryption:
- WPA / WPA2 / WPA-WPA2 / 802.1x
- 64 / 128 bit WEP encryption
- WPS (PIN, PBC)
Antenna: Built-in omni-directional smart antenna
Power Mode: BUS-Powered
Housing Material: BUS-Powered
Dimensions: 46(W) X 18.9(H) X 8.2(D) mm
Weight: Approximately 36 g
