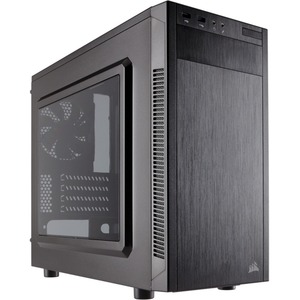

Carbide Series 88R MicroATX Mid-Tower Case

Compact, Elegant, and Easy to Build

The Carbide Series 88R microATX mid tower has all the modern features you need, with SSD compatibility, USB 3.0, and room for full sized graphics cards and power supplies. Room for five 120mm fans offers you excellent cooling potential and the clean, modern design and large window make the case as beautiful as it is functional.

The 88R also fits up to a 240mm front panel radiator if you're upgrading to liquid cooling, and the various tool free drive and cable routing options means your build will be fast and easy.

Elegant, modern design

The 88R is both professional enough for the office, and customizable enough for any home PC build.

Front support for 240mm radiators

The front-mounted 240mm dual radiator mount makes it easier to upgrade your CPU or GPU to liquid cooling.

USB 3.0 front panel port

It's easy to connect modern high-speed peripherals.

Tool-free 3.5" and 5.25" drive installation with easy SSD support

Installing or upgrading your storage no longer has to start with finding your screwdriver. And since the 88R has built-in mounts for high-performance 2.5" SSD drives, no separate adapter is necessary.

Direct airflow to the top GPU

The smart design channels air directly to your graphics card to provide it with the cooling it needs for intense gaming.

Up To five fan mounts, and one included 120mm fan

A 120mm fan gets your cooling off the ground, and extra mounts provide added expandability.

Manufacturer Part Number
CC-9011086-WW
EAN/UPC
0843591068628,843591068628
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Warranty:Two years

Weight:4.8kg

Case Form Factor:Mid-Tower

Dimensions:448mm x 198mm x 378mm

Case Motherboard Support:Mini-ITX, MicroATX

Maximum GPU Length:383mm

Maximum CPU Cooler Height:150mm

Maximum PSU Length:160mm

Case Expansion Slots:4

Case Drive Bays:
(x1) 5.25in
(x2) 3.5in
(x2) 2.5in

Case Material:Steel

Case Power Supply:ATX (not included)

External Connections:
(x1) USB 3.0
(x1) USB 2.0
(x1) Headphone Port
(x1) Microphone Port

Fan Mount Locations:
Front: (x2) 120mm
Top: (x2) 120mm
Rear: (x1) 120mm

Fans Included:Rear: (x1) 120mm

Radiator Mount Locations:
Front: 120/240mm
Rear: 120mm

Compatible Corsair Liquid Coolers:
H55, H60, H75, H80i, H100i, H105
