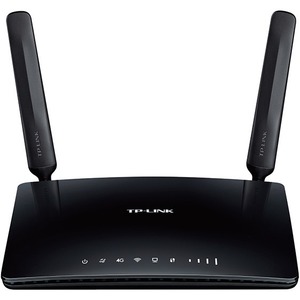

AC750 Wireless Dual Band 4G LTE Router

  • Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
  • Powerful, integrated antennas provide stable wireless connections and better coverage
  • Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
  • Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band
  • Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
Share Your 4G LTE Network

Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which can achieve download speeds of up to 150Mbps. The Archer MR200 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up.

Great Coverage and Dual Band Wi-Fi

The 4G LTE router creates a simultaneous dual band Wi-Fi network that can deliver data at speeds of up to 733Mbps. The two distinct wireless networks, utilizing the 2.4GHz and 5GHz bands, provide optimized performance and minimize signal interference. The incorporation of advanced antennas and the latest wireless technology allows you to enjoy stable connections and incredible coverage.

No Configuration Required

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier

Wi-Fi Where You Need It

The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered.

Available WAN Connection as Backup

With the inclusion of the WAN/LAN port, the Archer MR200 can also support a wide variety of connection types, including cable, fiber, and DSL modems.

Manufacturer Part Number
ARCHER MR200
EAN/UPC
6935364092740
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

HARDWARE FEATURES

Interfaces: 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot
Button: WPS/Reset Button, Wireless On/Off Button, Power On/Off Button
Dimensions (W X D X H): 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)
Antenna:

  • 3 Internal Wi-Fi Antennas,
  • 2 Detachable External 4G LTE Antennas
External Power Supply: 12V/1A

WIRELESS FEATURES

Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz
Reception Sensitivity:
  • 5GHz: 11a 54M: -74dBm
  • 11ac HT20: -67dBm
  • 11ac HT40: -64dBm
  • 11ac HT80 : -60dBm
  • 11n HT20: -71dBm
  • 11n HT40: -70dBm
  • 2.4G: 11g 54M: -76dBm
  • 11n HT20: -73dBm
  • 11n HT40: -67dBm
Transmit Power: CE: <20dBm(2.4GHz), <23dBm(5GHz)
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type:
  • 4G: FDD-LTE Cat4 (800/900/1800/2100/2600MHz)
  • TDD-LTE (2300/2600MHz)
  • 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz)
  • 2G: EDGE/GPRS/GSM (850/900/1800/1900MHz)
SOFTWARE FEATURES

Quality of Service: Trafc Control(IP QoS)
Operating Modes: 3G/4G Router, Wireless Router
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management: Access Control, Local Management, Remote Management
DHCP: Server, Client, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
VPN Pass-Through: PPTP, L2TP, IPSec
Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter,  IP and MAC Address Binding
Protocols: Supports IPv4 and IPv6
Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1

OTHERS

Certification: CE, FCC, RoHS
Package Contents:
  • AC750 Wireless Dual Band 4G LTE Router, Archer MR200
  • RJ45 Ethernet Cable
  • Power Adapter
  • Quick Installation Guide
  • Micro to Standard SIM Card Adapter
  • Nano to Standard SIM Card Adapter
System Requirements:
  • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher,or other Java-enabled
  • browsers
  • SIM Card
Environment:
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
