Product SKUs
MBD-X10DRD-iTP -O:

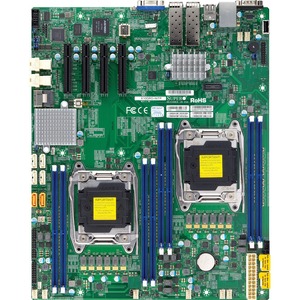

• X10DRD-iTP (Standard Retail Pack)

MBD-X10DRD-iTP -B:

• X10DRD-iTP (Bulk Pack)


Physical Stats
Form Factor:

• E-ATX

Dimensions:

• 13.05" x 10.5" (33.1cm x 26.7cm)


Processor/Cache
CPU:

• Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP)
• Dual Socket R3 (LGA 2011)

Cores / Cache:

• Up to 18 Cores / Up to 45MB Cache

System Bus:

• QPI up to 9.6 GT/s

Note: ** Motherboard supports this maximum TDP. Please verify your system can thermally support.


System Memory
Memory Capacity:

• 8x 288-pin DDR4 DIMM slots
• Up to 512GB ECC LRDIMM, 256GB ECC RDIMM

Memory Type:

• 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes:

• RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB

Memory Voltage:

• 1.2 V

Error Detection:

• Corrects single-bit errors


On-Board Devices
Chipset:

• Intel® C612 chipset

AHCI SATA:

• SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA:

• SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI:

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers:

• Intel® 82599ES Dual port 10G SFP+
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10G SFP+
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Video:

• ASPEED AST2400 BMC


Input / Output
SATA:

• 10x SATA3 (6Gbps) ports

LAN:

• 2x 10 Gigabit Ethernet SFP+ ports
• 1x RJ45 Dedicated IPMI LAN port

USB:

• 7x USB 2.0 ports total
  (4 rear, 2 via headers, 1 Type A)

Video:

• 1x VGA port

Serial Port / Header:

• 2x COM Ports (1 rear, 1 header)

DOM:

• 2x SuperDOM (Disk on Module) ports

TPM:

• 1x TPM 1.2 20-pin Header

Chassis (Optimized for X10DRD-iTP )
1U Chassis:

• SC815TQ-R500CB
• SC514-505
• SC514-441
• SC514-R400C

Important Chassis Notes:

• To support the new generation Intel® Xeon® processor-based motherboards,Revision M chassis is recommended. Please talk to your sales representative for details.

Expansion Slots
PCI-Express:

• 4x PCI-E 3.0 x8 slots


System BIOS
BIOS Type:

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features:

• Plug and Play (PnP)
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1


Management
Software:

• Intel Node Manager
• IPMI 2.0
• NMI
• SuperDoctor® 5
• Watch Dog

Power Configurations:

• ACPI Power Management
• Power-on mode for AC power recovery


PC Health Monitoring
Voltage:

• Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, +3.3V Standby, VBAT, Memory Voltages.
• 6 Phase-switching voltage regulator

FAN:

• 8x 4-pin fan headers (up to 8 fans)
• 8x fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature:

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x Fan Connectors
• Thermal Monitor 2 (TM2) support
• PECI

LED:

• CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote UID

Other Features:

• RoHS


Operating Environment
Operating Temperature Range:

• 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range:

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range:

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range:

• 5% - 95% (non-condensing)
