- Thunderbolt™2 interface with 20Gbps of throughput in both channels
- Solid 2U 16-bay (2.5") rackmount chassis
- Rear swappable integrated plate drawer for Mac mini
- Supports sixteen (16) 2.5 inch SSD or HDD Trays
- 3 PCIe slots support full length and full height PCIe cards
- Individual key lock on each HDD tray for physical security
- Server-grade single power supply

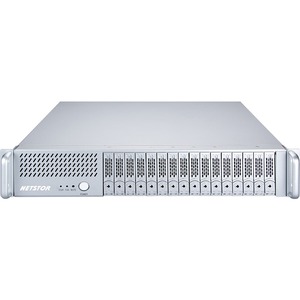

2U 16-bay Thunderbolt™ 2 Storage and PCIe Expansion Rackmount Solution
The NA338TB Thunderbolt™ 2 enclosure turns any Mac mini platform into an Enterprise-class rackmount server. With up to 128TB of integrated storage and 3 built-in PCIe slots for PCIe card expansion, the NA338TB is ideal for high-speed SAN architecture. The PCIe expansion slots support Thunderbolt™ Aware PCIe cards, including RocketRAID host adapters, Media Capture cards, and Fibre channel or 10G network interface cards.
Transforms Mac mini platforms into Media Servers!
The Thunderbolt™ NA338TB is equipped with two Thunderbolt™ 2 ports capable of daisy-chaining up to 6 Thunderbolt™ devices and delivering blistering 20Gbps bi-directional I/O performance. Mac mini systems can be easily integrated into the NA338TB chassis using the quick-access removable rear -panel.
Space Efficient, Robust Rackmount design keeps your storage devices cool and secure
Integrated cooling fans and front and rear-panel ventilation ensures the Mac mini platform and PCIe expansion cards operate at the coolest conditions possible to keep high-performance applications running smoothly. The space-saving architecture transforms the Mac mini into enterprise-class server with built-in PCIe expansion and mass storage capability.
Built-In Storage Capability
The 16 internal drive bays support industry standard 2.5" SAS/SATA hard drives or SSD's.
PCIe Expansion Solution
The 3 integrated PCIe slots support a extensive selection of Thunderbolt™ Aware PCIe cards, including HighPoint RocketRAID host adapters.
16-Port PCIe RAID Storage Solution: RocketRAID 2740
HighPoint’s RocketRAID 2740 is an ideal match for the NA338TB. This 16-channel PCIe 2.0 x8 6Gb/s SAS/SATA RAID HBA can be installed into one of the NA338TB’s PCIe 2.0 slots and can directly support drives installed into any of the 16 hot-swap bays via industry standard Mini-SAS cables.
The RocketRAID 2740 employs HighPoint's industry-proven Value RAID Architecture, and can support a wide-range of storage configurations for Mac and PC platforms, including RAID 0, 1, 5, 10, 50 & JBOD.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Feature Specifications
Host Interface: Thunderbolt™2 (Dual Port for Daisy Chain)
Data Transfer Rate: 20Gbps Bi-directional
HDD Interface: SAS/SATA (12G/6Gbps)
No. of Disk(s): Up to 16 (For 2.5" SSD/HDD & sold separately)
RAID Levels: Requires a RAID card with 16 internal ports and Thunderbolt™ driver (RocketRAID 2740)
PCIe Slot Expansion: Two PCIe2.0 x8 and One PCIe2.0 x4
Thunderbolt™ Expansion: Up to Six Thunderbolt™ devices
LED Display for Enclosure: Fan normal - green; Fan failure - red
Temp. normal - green; Temp. over 50°C - red
LED Display for each Tray: White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator
Alarm: Mutable buzzer beeping for fan failure or over temperature occurs
System Support: New Mac Pro, Mac mini, MBP, iMac with a Thunderbolt™ port
O.S. Support: Mac OS X 10.6.8/ 10.7.x/ 10.8.x/ 10.9.x/ Yosemite
PCIe card Driver requirement: Third-party PCIe card should support Mac OS X with Thunderbolt aware driver
Supported PCIe Cards: full length and full height PCIe card
Operating Specifications
Material : Heavy-duty cold-rolled steel Housing
Power Supply: 460W Single PSU (Server-grade)
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V
Dimension: 415(D) x 482(W) x 88(H) mm
16.3 (D) x 19 (W) x 3.48 (H) inch
Cooling: Four 60 x60 x25 mm cooling fans
Operating Temperature: 5 to 40°C (41 to 104°F)
Storage Temperature: -10 to 50°C (14 to 122°F)
Relative Humidity: 20 to 80% (non-condensing)
Packaging
Retail Box Dimensions: 61 x 60 x 24cm
Retail Box Weight: 31.31 lbs.
UPC code: 643653338016
Kit Contents: 1x NA338 Rackmount Enclosure
16x HDD Tray (Installed)
64x Hard Disk Drive mounting screws
2x Keys for HDD tray
2x Power Cords
1x Thunderbolt™ cable (2 meters)
1x Software CD
1x Quick Installation Guide
