FUll HD Portable USB-powered Monitor

Two Screens Are Better Than One

One Cable Does the Job

15.6-inch Full HD display with a single USB 3.0 cable for power and data transmission

Sleek and Ultra-portable

World’s slimmest and lightest USB monitors with a metallic finish

Adjusting to Your Needs

Auto-rotating display bundled with the ASUS Smart Case – a two-way adjustable stand and protective sleeve

One cable does the job, adding a second monitor has never been so easy

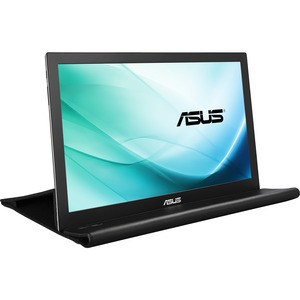

The 15.6-inch MB169B+ portable USB-powered monitor needs just one USB cable for both its video signal and power to deliver up to a Full HD resolution. Thanks to the higher bandwidth of USB 3.0, experience fast, fluid images from your connected device that makes having an on-the-go multi-display setup a reality. What’s more, the MB169B+ is backwards compatible with a notebook or desktop PC USB 2.0 port.

Sleek and ultra-portable with a Zen-inspired design

With a slim 8.5 mm (0.3-inch) profile and tipping the scales at just 800g (1.76 pounds), the MB169B+ is the world’s slimmest and lightest companion display, ideal for a simple on-the-go dual-monitor setup and mobile presentations.

A durable metallic finish with a fine pattern of concentric circles makes the MB169B+ the perfect complement to your notebook. And for added durability, it comes with a protective carrying case that doubles as an adjustable stand for tabletop use.

Adjusting to your needs

The MB169B+ with Auto Rotate (patent-pending) can automatically sense its orientation and switches the display between landscape and portrait based on its position; also, featuring IPS panel ensures a better viewing angle and nearly no color shift promise. These features provide you a more user-friendly scenario.

Increased productivity with ASUS EzLink technology

The MB169B+ features ASUS EzLink technology that offloads graphics processing from the PC to dedicated hardware in the monitor. As a result, a PC can drive up to five MB169B+ monitors at the same time, regardless of its own graphics capability — it just needs sufficient USB ports. EzLink also automatically restores application window positions as a MB169B+ monitor is connected and disconnected, and automatically rotates the image between landscape and portrait modes, as required.

Manufacturer Part Number
MB169B+
EAN/UPC
4716659957379
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

MB169B+

Display
Panel Size: Wide Screen 15.6"(39.6cm) 16:9
Panel Type : IPS
True Resolution : 1920x1080
Full HD 1080P : Yes
Pixel Pitch : 0.179mm
Brightness(Max) : 200 cd/㎡
Contrast Ratio (Max) : 700:1
Viewing Angle (CR≧10) : 160°(H)/160°(V)
Response Time : 14ms

Convenient Hotkey
Brightness Adjustment

I/O Ports
USB Port(s) : 3.0

Power Consumption
Power Consumption(Typical):<5W
Power Saving Mode:0W
Power Off Mode:0W

Mechanical Design
Chassis Colors : Silver+Black
Slim Design : Yes

Dimensions
Phys. Dimension(WxHxD):379x236x8.5mm
Box Dimension(WxHxD):435x297x57mm

Weight
Net Weight(Esti.):0.8kg
Gross Weight(Esti.):2.0kg

Accessories
ASUS Smart Case
USB 3.0 cable
Quick start guide
Support CD

Regulation Approval
BSMI, CB, CCC, CE, C-Tick, CU, FCC, PSE, RoHS, UL/cUL, VCCI, WEEE, WHQL (Windows 8, Windows 7)

Note
Minimum System Requirement : Windows 7 with 1.4GHz Core 2 Duo, 1GB RAM, Mac OS X 10.8.3*
Recommended Requirement : Windows 7 with 2.4GHz Core 2 Duo or above, 2GB RAM
Video Playback Recommendations : Windows Media Player, Cyberlink PowerDVD, Core WinDVD
*Ezlink Utility software supports Window based operation system only
