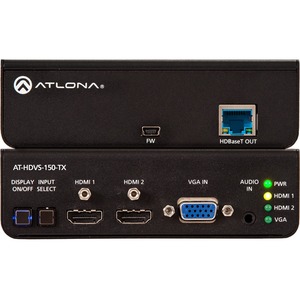

Switcher for HDMI and VGA Inputs with HDBaseT Output
The AT-HDVS-150-TX is a 3×1 Switcher for HDMI and VGA Inputs with HDBaseT Output. It features two HDMI inputs plus a VGA input with 3.5mm audio connector. The AT-HDVS-150-TX combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60Hz with embedded audio, VGA input signals up to 1920×1200 video, and control signals can be extended up to 230 feet (70 meters). The switcher enables auto display on/off, auto-switching, along with other features. The switcher receives power from the AT-HDVS-150-RX receiver using Power over Ethernet. The AT-HDVS-150-TX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.
Automatic Display Control
The AT-HDVS-150-TX, when used in combination with the AT-HDVS-150-RX receiver, allows automatic display control using RS-232 signals. When integrated with a display, the AT-HDVS-150-RX forces the display to power on automatically when a laptop is connected to the AT-HDVS-150-TX. At the end of the presentation, when the presenter disconnects the laptop from the transmitter, the AT-HDVS-150-RX forces the display to power off. Ease of presenter interaction with the system and the savings incurred by auto-display shutdown provide a significant return on investment.
- RS-232 – Many displays including projectors, commercial flat panel displays, and some consumer displays can be controlled using the RS-232 signal directly from the switcher. The switcher is able to send commands using RS-232 for automatic display control to compatible displays.
Reliable Auto-Switching
Automatic input selection on the AT-HDVS-150-TX uses the 5 volt, hot plug signal in order to detect and automatically switch to the proper input.
The AT-HDVS-150-TX is ideal for:
- Education environments – The switcher is placed on a lectern for use with remote video inputs such as a laptop and document camera. Auto-switching technology selects the active source input and routes the signal via HDBaseT to the switcher downstream.
- Corporate environments – The switcher is placed at a boardroom conference table to allow presenters to easily connect their laptops to the system. When integrated with a control system, commands can be sent to activate a display from the front panel of the switcher.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Resolution
Video: 4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p,
1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
Color Space: YUV, RGB
Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
Color Depth: 8-bit, 10-bit, 12-bit
Audio
Analog IN: PCM 2Ch
HDMI IN & HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit Rate: up to 24-bit
Distance
CAT5e/6 @ 4K: up to 35 meters: up to 115 feet
CAT6a/7 @ 4K: up to 40 meters: up to 130 feet
CAT5e/6 @ 1080p: up to 60 meters: up to 197 feet
CAT6a/7 @ 1080p: up to 70 meters: up to 230 feet
HDMI IN/OUT @ 4K: up to 5 meters: up to 15 feet
HDMI IN/OUT @ 1080p: up to 10 meters: up to 30 feet
Signal
Bandwidth: 10.2 Gbps
CEC: Yes
HDCP: 1.4
Temperature
Operating: 0°C to 50°C: 32°F to 122°F
Storage: -20°C to 60°C: -4°F to 140°F
Humidity: 20 to 90% non-condensing
Power
Consumption: 18.7W (when paired)
Dimension
H x W x D: 38 x 127 x 102 (mm): 1.5 x 5 x 4.02 (inch)
Weight
Unit: 2.34kg: 5.16lbs
Certification
Unit: CE, FCC
