The VIVOTEK AW-GEV-264A series, referred to as VivoCam PoE switch, is the world’s first PoE switch with IP surveillance management functions. This switch is not only a standard L2 PoE switch, but also able to set up and configure VIVOTEK IP cameras, NVR and CMS. With single AW-GEV-264A series, the VivoCam PoE switch allows users to find all VIVOTEK devices and deploy a surveillance network system automatically.
The AW-GEV-264A series also features Graphic Monitoring, such as Topology/Map view for controlling and understanding network structure and device situation, and Google Map integration to view system situation status for outdoor applications. It not only features surveillance network environment set up functions, but troubleshooting and traffic monitoring functions also help users to clarify and troubleshoot any connection or device issue. In addition, users can also back up their IP camera configuration files, and batch re-boot/re-store camera device through the VivoCam PoE switch. With all of these features and more, the AW-GEV-264A series is the best PoE solution to install and manage your VIVOTEK devices.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Specifications-Managing IP Surveillance

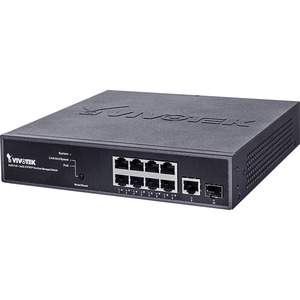

Model: AW-GEV-104A-130
Product Description : VivoCam 8xGE PoE + 2x GE UTP/SFP L2 Managed Switch
Managing IP Surveillance Functions:
Management:
- Auto Search VIVOTEK Device : up to 64 pcs
- Surveillance Device Management List : V
- DHCP Server Function : V
- VIVOTEK Device Account/Password Setting : V
- VIVOTEK Device Static IP Setting : V
- VIVOTEK Device Grouping Setting for VLAN : V
- VIVOTEK Device Name Edit : V
- VIVOTEK Camera/Video Server Reboot/Restore Default : V
- VIVOTEK Device Re-direct Link : V
- VIVOTEK Device On/Off Line Status : V
- Topology View : V
- Floor View : V
- Google Map View : V
- VIVOTEK Camera/Video Server Batch SW Upgrade : V
- VIVOTEK Camera/Video Server Configuration File Export/Import : V
- VIVOTEK Cameras/Video Server Configuration File Management : V
- Floor Image Management : V
- Export Surveillance Management Device List : V
- Security : V
- Trouble Shooting : V
- Traffic Monitoring : V
- Port Configuration
- 10M/100M/1G RJ45 Port : 9
- 100M/1G SFP Port : 1
- GbE RJ45/SFP Combo Port : -
- Total Ports : 10
- HW Performance :
- Switching Bandwidth : 20Gbps
- MAC Address : 8K
- Jumbo Frames : 9216 Bytes
- Number of PoE Out Ports: 8
- Max. PoE Output Power/per Port :30W
- 802.3at/af standard Compatible :V
- Over Current Protection : V
- Circuit Shorting Protection : V
- Total PoE Power Budget : 130W
- Power Pin Assignment : 1/2(+), 3/6(-)
- PoE PD Auto Detection : V
- Operating Temperature : 0°C ~ 50°C (32°F ~ 122°F)
- Operating Humidity : 10 ~ 90% RH
- Storage Temperature :-20°C ~ 70°C (-4°F ~ 158°F)
- Storage Humidity : 10 ~ 90% RH
- Dimensions : 44 (H) x 220 (W) x 242.4 (D) mm
- Weight : 2 kg
- Power Source
- AC input : 100V-240V
- Certifications: CE, FCC, LVD, VCCI, C-TICK
- Included Accessories : Power Cord, QIG, CD Manual, Rack Mount Kit
