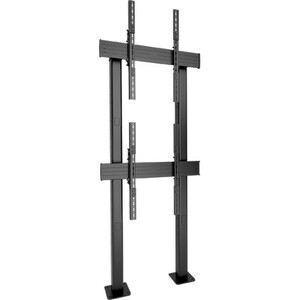

FUSION 1 X 2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall, Portrait

Chief's FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.

Screen array configuration: 1 screen wide x 2 screens high in portrait.

Manufacturer Part Number
LBM1X2UP
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Center of Display to Floor/Table Range:: 82.39" (2093 mm) (maximum top) - 16.38" (416 mm) (minimum bottom)
Certifications:: UL Listed
Color:: Black
Lateral Shift:: Yes
Manual Height Adjustment:: Micro-adjustment up to 0.75" (19 mm) per screen
Mounting Pattern Compatibility (Universal Versions):: 100 mm x 100 mm – 800 mm x 900 mm
Notes:: TAA Compliant
Orientation:: Portrait
Overall Dimensions (H x W x D):: 84.45 X 36 X 7.5" (2145 x 914 x 191 mm)
Plumb Adjustment:: Micro-adjustment up to 0.75" (19 mm)
Screen Array Configuration:: 1x2
Shipping Weight:: 190.00 lbs
Solution Type:: Universal
Typical Screen Sizes:: 42 - 80"
Weight Capacity:: 125 lbs (56.7 kg) per display
