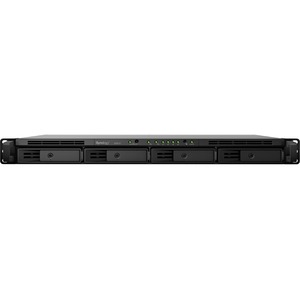

RackStation RS815 NAS Server

12-inch depth for ultra-dense installation

Introducing a shallow 12-inch chassis design — 37% shorter than its predecessor – RS815 can be deployed with as compact as a 2-post rack or a wall-mount server rack. For companies where space is at a premium, it demonstrates how uncompromising performance and functionality are achievable even within such a small footprint.

Dual core CPU with floating-point unit enhances productivity

RS815 is equipped with a dual-core CPU featuring a built-in floating-point unit which enhances the overall capability of the main CPU, enabling higher working efficiency, while 1GB RAM significantly increases RS815's multi-tasking power. It delivers an average of over 216 MB/sec reading speed, and over 121 MB/sec writing under RAID 5 configuration in a Windows® environment.

Reliable redundancy mechanisms

RS815 comes with dual LAN failover support to ensure continual network service in case of LAN failure, while the hot-swappable design facilitates easy and risk-free hard drive replacement. The hard drive tray lock design further secures your hard drives from unauthorized or accidental withdrawal.

SuperSpeed USB 3.0 accelerates transfer rates

RS815 optimizes your working experiences by enabling faster and more efficient data transfers. To ensure scalability, RS815 provides an eSATA and two USB 3.0 interfaces in the back to speed up data transfer with Synology expansion unit and external hard drives.

Robust scalability up to 8 drives

When the storage capacity of RS815 is nearing its limit, additional storage can be easily added with Synology RX415 expansion unit which provides room for an additional 32TB volume, allowing for a total raw capacity of 64TB . Equipped with specially-designed locking connectors, Synology RX415 can be securely connected to RS815 via an eSATA cable.

Award winning OS - DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.

Ultimate file center

File Station is a fast and secure feature for sharing and managing your files stored on RS815. Just drag-n-drop and upload data from Mac or PC. Advanced filters make it easy to search for documents, photos, or videos. With built-in FTP or email clients, RS815 lets you organize and share files through an advanced web application effortlessly. You can even share files and folders with others by simply sending a link. Files can be reached on mobile devices via the companion mobile app DS file. HTTPS, SSL/TLS encryption, and link expiry dates also ensure file sharing over the Internet is highly secure.

Connect your data quickly and easily

Synology aims to provide you the most convenient way to enjoy all services on RS815. With Synology QuickConnect, you don't have to deal with difficult DDNS setup. QuickConnect frees you from complicated router configuration and port-forwarding, so your entertainment and work files can be accessed on any computer, laptop, or mobile devices instantly without extra charge.

Manufacturer Part Number
RS815[Without Plus]
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Hardware Specifications
CPU:
CPU Model: MARVELL Armada XP MV78230
CPU Frequency: Dual Core 1.33 GHz
Floating Point: Yes
Hardware Encryption Engine: Yes

Memory:
System Memory: 1 GB DDR3

Storage:
Drive Bay(s): 4
Maximum Drive Bays with Expansion Unit: 8
Compatible Drive Type:

  • 3.5" SATA III / SATA II HDD
  • 2.5" SATA III / SATA II HDD
  • 2.5" SATA III / SATA II SSD
Maximum Internal Raw Capacity: 32 TB (8 TB HDD X 4) (Capacity may vary by RAID types)
Hot Swappable Drive: Yes

External Ports:
USB 3.0 Port: 2
eSATA Port: 1

File System:
Internal Drives: EXT4
External Drives:
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+ (Read Only, with max. volume size 2TB)
Appearance:
Size (Height X Width X Depth): 44 mm X 430.5 mm X 290 mm
Weight: 4.34 kg

Others:
RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
Wake on LAN/WAN: Yes
System Fan: 40 mm X 40 mm X 3 pcs
Fan Speed Mode:
  • Cool Mode
  • Quiet Mode
Wireless Support (dongle): Yes
Noise Level*: 25.3 dB(A)
Power Recovery: Yes
Scheduled Power On/Off:
Power Supply Unit / Adapter: 150W
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 HZ, Single Phase
Power Consumption*:
  • 28.59 W (Access)
  • 14.35 W (HDD Hibernation)
British Thermal Unit:
  • 97.55 BTU/hr (Access)
  • 48.96 BTU/hr (HDD Hibernation)
Environment Temperature:
Operating Temperature: 5°C to 35°C (40°F to 95°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Relative Humidity: 5% to 95% RH

Certification:
  • FCC Class A
  • CE Class A
  • BSMI Class A
Warranty:
3 Years

Notes:
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications


Storage Management:
Maximum Single Volume Size: 16 TB
Maximum Internal Volume Number: 256
Maximum iSCSI Target Number: 10
Maximum iSCSI LUN: 256
Supported RAID Type:
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10

RAID Migration:
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6

Volume Expansion with Larger HDDs:
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6

Volume Expansion by Adding a HDD:
  • Synology Hybrid RAID
  • RAID 5
  • JBOD
  • RAID 6 (with Expansion Unit)

Global Hot Spare Supported RAID Type:
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6 (with Expansion Unit)
  • RAID 10 (with Expansion Unit)
File Sharing Capacity:
Maximum User Accounts: 2048
Maximum Groups: 256
Maximum Shared Folder: 256
Maximum Shared Folder Sync Tasks: 4
Maximum Concurrent CIFS/AFP/FTP Connections: 256
Windows Access Control List (ACL) Integration: Yes
NFS Kerberos Authentication: Yes
Log Center: Yes
Syslog Events per Second: 400

Add-on Packages :
Antivirus Essential: Yes
Audio Station: Yes
Cloud Station: Yes
Maximum Concurrent File Transfers: 256
Cloud Sync: Yes
Directory Server: Yes
DNS Server: Yes
Download Station: Yes
Maximum Concurrent Download Tasks: 50
Glacier Backup: Yes
HiDrive Backup: Yes
iTunes Server: Yes
Java Manager: Yes
Mail Server: Yes
Mail Station: Yes
Media Server: Yes
DLNA Certification: Yes
Note Station: Yes
Photo Station: Yes
RADIUS Server: Yes
Surveillance Station: Yes
Maximum IP cam (Licenses required): 16 (including 2 Free License)
Total FPS (H.264)*:
  • 480 FPS @ 720p (1280x800)
  • 160 FPS @ 1080p (1920×1080)
  • 120 FPS @ 3M (2048x1536)
  • 70 FPS @ 5M (2591x1944)
Total FPS (MJPEG)*:
  • 270 FPS @ 720p (1280x800)
  • 135 FPS @ 1080p (1920×1080)
  • 90 FPS @ 3M (2048x1536)
  • 60 FPS @ 5M (2591x1944)
Time Backup: Yes
Maximum Task Number: 4
Video Station: Yes
Video Transcoding: Group 2 (See more)
VPN Server: Yes
Maximum Connections: 15
Notes: Surveillance Station throughput is tested with Axis P1347 (H.264@1280x720@30FPS), using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. Recording video is saved every 5 minutes with the limit of archive folder up to 1GB.


Environment & Packaging:

Environment:
RoHS Compliant

Packaging Content:
  • Main Unit X 1
  • Installation Disc X 1
  • Welcome Note X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
Optional Accessories:
  • Camera License Pack
  • Expansion Unit: RX415 X 1
  • VS240HD
  • Synology RKS1314 - Rail Kit Sliding
  • Synology RKM114 - Rail Kit Mounted
