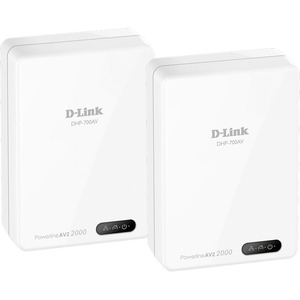

PowerLine AV2 2000 Gigabit Network Extender Kit

Overview

Create a high-speed home network at speeds of up to 2000Mbps. The kit includes two DHP-700AV Powerline AV2 2000 Gigabit Adapters. You can connect several different devices, from routers, computers, access points, gaming consoles, to Smart TV’s, bringing Ethernet network connectivity to hard-to-reach areas in your home. Each adapter will come with the latest in AV2 MIMO technology and Gigabit connectivity so that you can stream more HD media, transfer all those large files and be online playing games with your friends.

Why MIMO technology?

MIMO (Multiple Input Multiple Output) technology means higher data transfer rates, better coverage and a more stable network. In other words, your overall network performance will be improved thanks to the use of multiple antennas, compared to the use of a single antenna used in SISO (Single Input Single Output).

Setup couldn't be any easier

Just connect in one of your adapters to your router, connect the other adapter to your device and then press the Simple Connect button to create a secure connection. It’s that simple!

Manufacturer Part Number
DHP-701AV
EAN/UPC
0790069413186,790069413186,0790069419249,790069419249,0790069416538,790069416538
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Specifications

Standards

  • IEEE 802.3
  • IEEE 802.3u
  • HomePlug AV
  • HomePlug AV2
  • IEEE 1901
Ethernet Interface
  • 10/100/1000Mbps Gigabit Ethernet
Minimum Requirements
  • Electrical wiring with at least two available outlets on the same circuit
  • Internet Explorer® 11, Mozilla® Firefox® v28, Google Chrome v33, or Safari v7
  • Cable, DSL or Fiber Optics
  • Router
  • Computer with Windows® 8.1, Windows® 8, Windows® 7 , or Mac OS® X (v10.7)
Physical Dimensions
  • 3.89 x 2.86 x 1.34 inches
Weight
  • 0.4 lbs
Input Power
  • 100V ~ 240V
LEDs
  • Power, PowerLine, LAN (from right to left)
Temperature
  • Operating: 32 to 104 °F
  • Storage: -4 to 149 °F
Humidity
  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing
EMC Certifications
  • FCC
Safety Certifications
  • UL
Package Contents
  • 2 x PowerLine AV2 2000 Gigabit Adapters (DHP-700AV)
  • Warranty documents
  • 2 x Ethernet Cables
  • Quick Installation Guide
