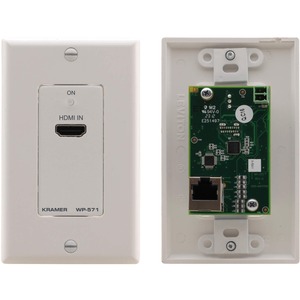

The WP-571 is a DGKat™ wall plate transmitter for HDMI signals. The WP-571 converts an HDMI signal to a DGKat™ twisted pair signal that it transmits to a WP-572.

• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliant.
• DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
• HDMI Support - HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD.
• 3D Pass-Through.
• System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.
• Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
• EDID PassThru - Passes EDID signals between the source and display.
• Active Power Indication - The ON LED lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are attached.
• Power Connect™ System - A single connection to the transmitter powers the receiver.
• Dimensions - 3.3cm x 3.6cm x 10.4cm (1.3" x 1.42" x 4.1") W, D, H.
