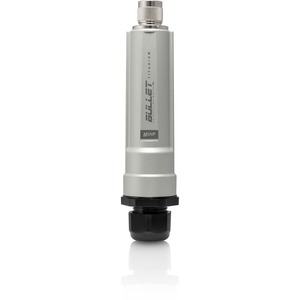

Bullet M BM5-TI Wireless Bridge

Revolutionary Design

The Bullet™ M Titanium is the latest version of the popular Ubiquiti Bullet. Like its predecessor, Bullet M Titanium is a wireless radio with an integrated N-Type RF connector that can be directly plugged in to any antenna1 to create a powerful and robust outdoor Access Point, Client, or Bridge.

The Bullet M Titanium features a tough weatherproof design. Made from aircraft-grade aluminum, the casing is designed to withstand nature’s harshest elements.

With up to 600 mW of power and enhanced receiver design, the Bullet MTitanium is ideal for long-distance links, capable of up to 100+ Mbps real TCP/IP speeds over several kilometers.

Manufacturer Part Number
BM5-TI-US
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

System Inforamtion

Processor Specs Atheros MIPS 24KC, 400 MHz
Memory Information 32 MB SDRAM, 8 MB Flash
Networking Interface (1) 10/100 Ethernet Port

Regulatory / Compliance Information


Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes

Physical / Electrical / Environmental


Dimensions 190 x 46 mm
Weight 196 g
Enclosure Characteristics Powder Coated Aluminum
Antenna Connector N-Type Connector (male)
Power Supply 24V, 0.5A PoE Adapter (included)
Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Max. Power Consumption
BM2-Ti 7 Watts
BM5-Ti 6 Watts
Operating Temperature -40 to 80° C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4

Software Information


Modes Station, Access Point, AP Repeater
Services SNMP, DHCP, NAT
Utilities Site Survey with Preferred SSID, Antenna Alignment Tool, Discovery Utility
Security WEP/WPA/WPA2
QoS 802.11e / WMM Support
Statistical Reporting Ethernet Activity, Uptime, Packet Success/Errors
