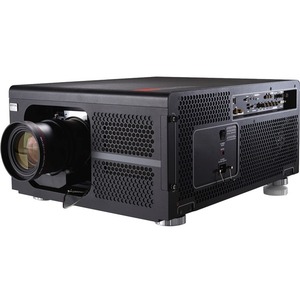

Featuring a stylish projector design with a very stable lens mount, the RLM-W14 offers Active Stereo 3D and provides video over a single Cat 5 cable (HDBaseT™. It is designed for fixed installation in museums, theaters, houses of worship, hotels, lecture halls or conference auditoriums; but its extended warping and blending, rugged chassis and optional rental frame make it equally suited for the rental market as well.
Video over a single Cat 5 cableSupporting point-to-point transmission of video signals – up to WUXGA (1,920 x 1,200) at 60 Hz – from a source converter to a projector over a single Cat 5 cable, the RLM-W14’s HDBaseT™ technology takes away the need for multiple cables and connectors, leading to more simplicity and lower costs.
Stunning imagesGeared with three-chip DLP technology, the high-brightness RLM-W14 generates crisp and stable images with rich contrast and sensational colors. It also features a DICOM simulated mode that guarantees accurate grayscales and highly detailed images – key requirements for medical training.
Rugged designOperating on a voltage of 110V - 240V, the RLM-W14 is a rugged projector that reduces noise and power consumption. Moreover, its TLD lenses are compatible with the RLM-W12, HDX and HDF projectors. It’s also standard equipped with BarcoLink, allowing native WUXGA @60 Hz signals to be transmitted between the Barco image processors and projectors via a single BNC cable, for simple and reliable signal distribution.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Projector type: WUXGA 3-chip DLP digital projector
Technology: 0.96" DMD™ x3
Resolution: 1,920 x 1,200
Brightness: 14,500 center lumens / 13,500 ANSI lumens
Contrast ratio: 1,650:1 (standard) / 2,400:1 (CE)
Brightness uniformity: 90%
Aspect Ratio: 16:10
ScenergiX: Horizontal and vertical edge blending
Lens type: TLD+
Lenses: (fix) 0.73:1 ; 1.2:1 ; (zoom) 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1; 7.5-11.5:1
Optical lens shift: Vertical: -70% to +130% / Horizontal: +/-30% on zoom lenses memorized
Color correction: P7
Lamps: 2x465W
Lamp lifetime: 2,000 hours (typical) / 2,500 hours (maximum)
Lamp warranty: 120 days, 500 hours
Sealed DLP™ core: Standard
Optical dowser: Standard
Picture-in-picture: Up to two sources simultaneously
Orientation: table - ceiling
WARP: preset values + custom
Integrated web server: Yes
3D: Dual link DVI with sync in /out BNC
Inputs: HDMI (HDCP 1,3); HDBase-T; 5-BNC (RGBHV, RGBS/RGBsB;YUV); VGA (RGBHV, RGBS/RGBsB;YUV); cinch (RGBs, YUV); HSDI/ 3G HDSDI /SDI; 3D DUAL LINK DVI
Input Resolutions: From NTSC up to UXGA (1,600 x 1,200), including HDTV (1,920 x 1,200)
Max. pixel clock: 165Mhz up to 200Mhz
Software tools: Projection Toolset + Android app + iOS app
Control: Mini-jack + IR, RS232, 12v trigger
Network connection: 10/100 base-T, RJ-45 connection
Power requirements: 90-240V / 50-60Hz - 1,140W @ 240V, 1,230W @ 110V, STBY less than 2W
Noise level (typical at 25°C/77°F): 46 dB(A) norm, 42dB(A) eco
Operational ambient temperature: 0-40°C / 32°-104°F
Operational humidity: 0-80% (non condens)
Dissipation BTU: max 4,131 BTU/h
Dimensions (WxLxH): 631 x 504 x 270 mm / 24.8 x 19.82 x 10.63 inches
Weight: 33.5kg (73.8 lbs)
Shipping Dimensions: (LxWxH) 829 x 709 x 437 mm / 32.64 x 27.9 x 17.20 inches
Shipping Weight from Factory: 41.5 kg (91.49 lbs)
Standard accessories: Power cord, wireless remote control, HDMI to DVI adaptor
Certifications: Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RHoS, WEE
Warranty: 3 years standard, extra 2 years optional
