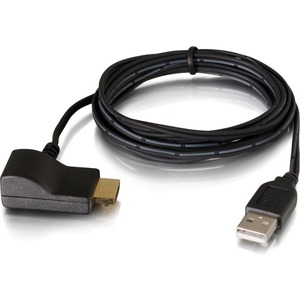

USB Powered HDMI Voltage Inserter

The USB Powered HDMI Voltage Inserter is the ideal solution for supporting HDMI bus-powered devices such as extenders, active cables with embedded chip sets, or signal sensing switches. HDMI was not designed to support bus-powered accessories. The power supplies associated with source devices such as computers, teleconferencing codecs, media players and set-top boxes are designed, according to HDMI standards, to deliver a 55mA hot plug supply. When an accessory demands more current than the source can supply, the system may fail to operate dependably. Insufficient power may manifest as a flashing image (HDCP problem), distorted video (EDID related issues), or even a complete loss of the image (hot plug assertion failure) Maintaining the proper voltages in the HDMI System is critical to the hardware “handshake”, HDCP key authentication and exchange, EDID information exchange and hot plug connection detect.

This voltage inserter isolates the power from the source device and provides a full 5 volts and up to 500mA of clean, dedicated power to support HDMI switching, splitting and extension accessories. If an installation leverages active cables with embedded chipsets, embedded electronic-to-optical media conversion, signal-sensing auto-switching or similar devices, then this power inserter will be a critical performance element.

Manufacturer Part Number
42236
EAN/UPC
0757120422365,757120422365
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Color :: Black
UPC :: 757120422365
Warranty :: 3 Years
Vendor :: C2G
Weight :: 0.108 LB

•Download a PDF with the technical specifications of this product on the Support tab
Electrical Specifications
• Resolutions supported: up to 1080p
• Voltage rating: 5V, 1A
• Conductor resistance: 34Ω/km at 20°C
Physical Specifications
• Operating temperature: 0° – 50°C
• Storage temperature: -25° – 70°C
• Cable length: 70in (1800mm)
