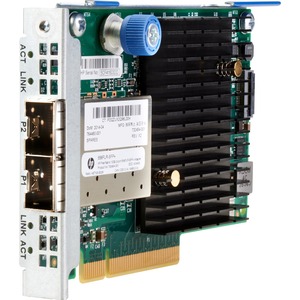

Do you need a high-performance 10 Gb Ethernet adapter for your HP ProLiant Gen9 server family? The HP FlexFabric 10Gb 2-port 556FLR-SFP+ Adapter is installed in the FlexibleLOM socket in the ProLiant Gen9 Rack/Tower servers. The adapter offers 10 GbE FlexibleLOM with RDMA and Tunnel Offload features.
It provides full-featured, high-performance, converged 10 Gb Ethernet that accelerates IT services and increases data center efficiency. Tunnel Offload provides efficient overlay networking to increase VM migration flexibility and network scale with minimal impact to performance. Traditional layer 2 networks limit mobility and scale of virtualized and multi-tenant workloads.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Network processor
- Emulex XE-102
Data rate
- Two ports, each at 20 Gbps bi-directional
- 40 Gbps aggregate bi-directional theoretical bandwidth.
Bus type
- PCI Express v3.0 (Gen 3) x8
Form factor
- FlexibleLOM
Power
- 8.4W Typical, 9.7 W Max
Server supported
- ProLiant servers
IEEE compliance
- 802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad/LACP, 802.1AB(LLDP), 802.1Qbg, 802.1Qbb, 802.1Qaz
Compatible operating systems
- Microsoft Windows Server 2012, 2012 R2, 2008 R2 w/ SP1 (x64)
- Microsoft Windows Hyper-V 2008 R2 w/SP1, 2012, 2012 R2
- Red Hat Enterprise Linux 6.5
- SUSE Linux Enterprise Server 11, SP3 ( x64)
- VMware ESXi 5.1 U2, 5.5 U1
- Citrix XenServer 6.5 (Creedence)
- Citrix XenServer (Naples) (x64)
Product differentiator
- 10Gb FlexibleLOM with RDMA and Tunnel Offload features for HP ProLiant rack/tower sever
- Dimensions (W x D x H): 120 x 77 x 16 mm (4.7 x 3.0 x 0.63 in)
- Weight: 94 kg (0.21 lb)
