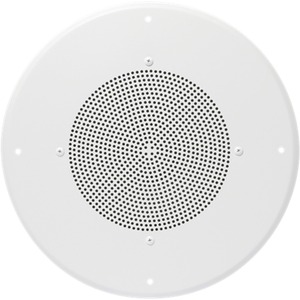

Model HD70W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.
The HD70W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance. The HD70W includes a factory mounted 70V transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100Hz to 10kHz. Speaker / transformer is factory installed on a 62-8 style baffle.
This industry favorite is aesthetically pleasing and constructed of 24-gauge CRS finished in textured white epoxy.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Speaker Type : Treated Paper
Frequency Response : 100Hz - 10kHz
Power Taps : .5, 1, 2, & 5 Watts
Dispersion : 105°
Sensitivity : 97dB Peak, 94dB Average
Depth : 2 7/8" (7.3025 cm)
Diameter : 8" (20.32 cm)
Shipping Weight : 4.50 lbs (2.04 kgs)
