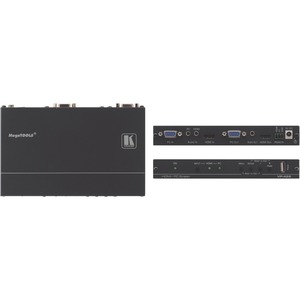

The VP−426 is a high−performance digital scaler for computer graphics/HDTV and HDMI signals. The unit up− or down−scales computer graphics and HDTV signals to resolutions of up to WUXGA and 1080p.
- Inputs - RGBHV, YPbPr or HDMI.
- Outputs - RGBHV and HDMI simultaneously.
- HDTV Compatible.
- HDCP Compliant.
- Input Auto-Scanning.
- EDID Capture - Copies and stores the EDID from a display device.
- Analog/Embedded Audio Support.
- Built-In ProcAmp - Color, hue, sharpness, contrast, and brightness controls.
- Control - Front panel, OSD (on screen display), contact closure.
- Non-Volatile Memory - Saves final settings.
- Freeze Button.
- Contact Closure - For remote switching of sources.
- USB Port - For upgrading firmware.
- Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging
Home theater up-scaling
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
INPUTS:: 1 PC/HD (RGBHV/YPbPr) on a 15−pin HD connector, 1 HDMI connector, 2 unbalanced stereo audio connectors on 3.5mm mini jacks.
OUTPUTS:: 1 PC (RGBHV) on a 15−pin HD connector, 1 HDMI connector, 1 unbalanced stereo audio connector on a 3.5mm mini jack.
OUTPUT RESOLUTIONS:: NATIVE, 480i, 480p, 720p@60Hz, 1080i@60Hz, 1080p@60Hz, 576i, 576p, 720p@50Hz, 1080i@50Hz, 1080p@50Hz, 640x480, 800x600, 1024x768, 1280x1024, 1600x1200, 1366x768, 1680x1050, 1920x1200, 1280x800, 1440x900, 1400x1050, 1600x900.
OUTPUT REFRESH RATE:: 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions.
VIDEO LATENCY:: Progressive input: 30ms (approx.); interlaced input: 50ms (approx.).
CONTROLS:: Front panel buttons, 1 remote contact closure on a 3−pin terminal block connector, 1 USB for programming.
INDICATORS:: ON, HDMI and PC LEDs.
POWER CONSUMPTION:: 5V DC, 1.1A.
OPERATING TEMPERATURE:: 0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:: −40° to +70°C (−40° to 158°F).
HUMIDITY:: 10% to 90%, RHL non−condensing.
SHIPPING DIMENSIONS:: 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT:: 1.0kg (2.1lbs) approx.
INCLUDED ACCESSORIES:: Power supply.
OPTIONS:: RK−T2B 19” rack adapter.
