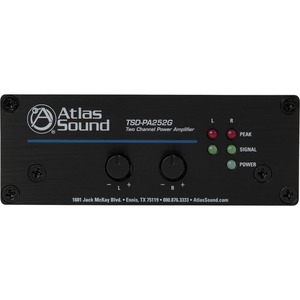

TSD-PA252G 25W x 2 @ 4Ω Two-Channel Power Amplifier

The TSD-PA252G is a reliable, cost effective 4Ω stereo amplifier well suited for higher power amplification requirements.  Output is 25W per channel at 4Ω or 50W bridge mono at 8Ω. Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs.

Manufacturer Part Number
TSD-PA252G
EAN/UPC
0006120791880,006120791880
Full Product Specifications

Note:

  • The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
  • These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
  • These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Frequency Response: 20Hz - 20kHz
Power Output: 25W x 2 CH @ 4Ω, 50W x 1 CH @ 8Ω Bridged
Balanced Input Impedance: 10KO Balanced, 5KO Unbalanced
THD: .2% & 1kHz
24VDC Power Requirements: 2000mA
Height: 1.5" (3.81 cm)
Width: 4" (10.16 cm)
Depth: 5.2" (13.2 cm)
