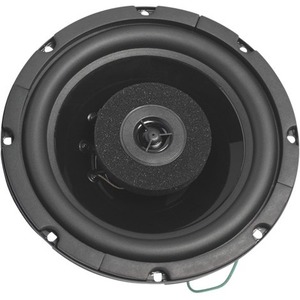

Model FA138 is Atlas Sound's premium 8" coaxial loudspeaker. This 32-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. It incorporates a tapered backplate for increased magnetic circuit efficiency and offers a frequency response of 75Hz - 20kHz. Model FA138 contains a Kevlar® fiber reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1 1/2" vented Kapton voice coil, a 21 oz. magnet and a 1.2" mylar dome ferro fluid tweeter for clean and powerful weather-resistant performance.
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Speaker Type : Coaxial
Frequency Response : 75Hz - 20kHz
Power Taps : 8, 16, & 32 Watts
Sensitivity : 89.5dB Average, 93dB Peak
Dispersion : 110°
Depth : 5 1/2" (13.97 cm)
Diameter : 8 1/4" (20.955 cm)
Shipping Weight : 8.00 lbs (3.63 kgs)
Safety Listed : 1480
